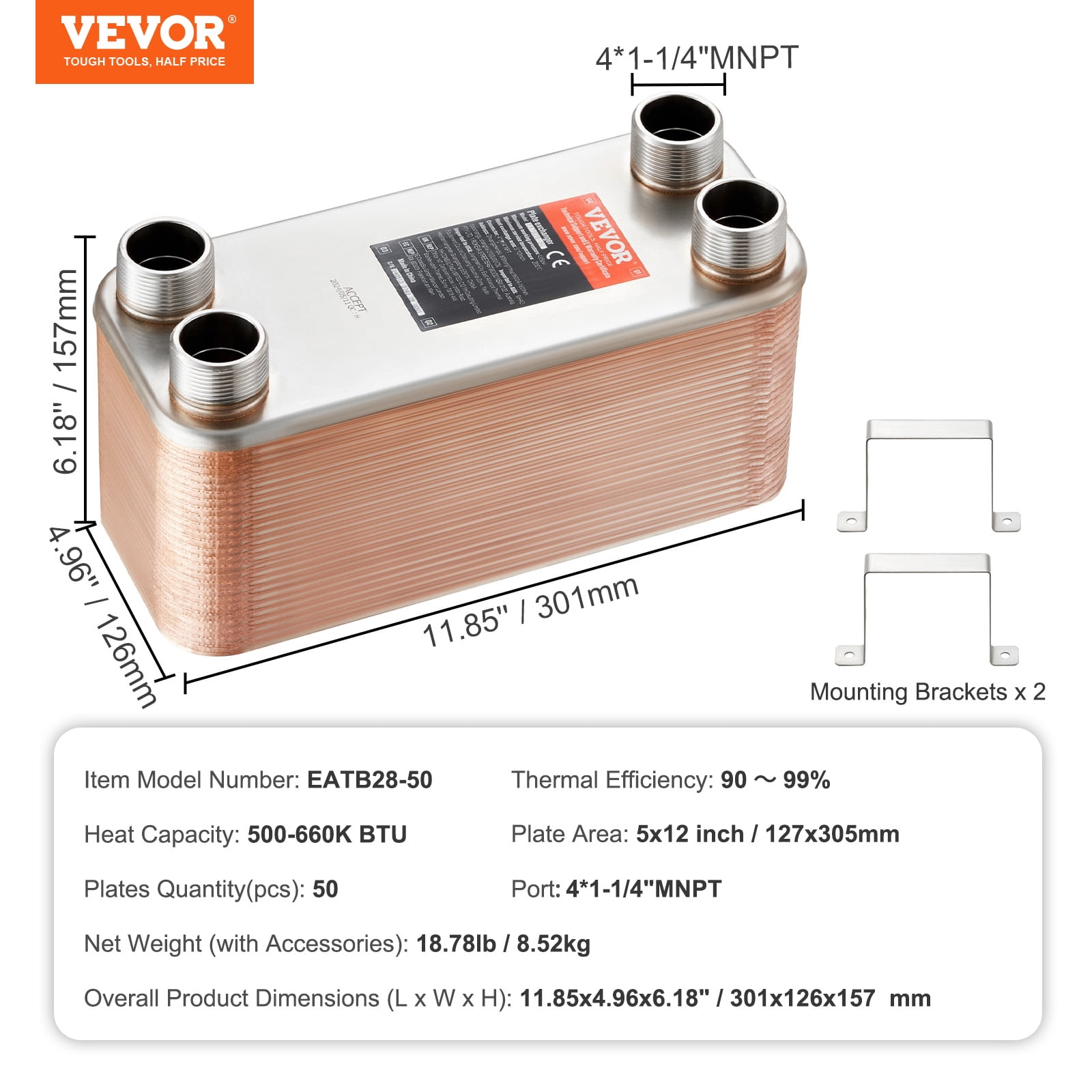

VEVOR Heat Exchanger, 5"x 12" 50 Plates Brazed Plate Heat Exchanger, Copper/316L Stainless Steel Water To Water Heat Exchanger For Floor Heating, Water Heating, Snow Melting, Beer Cooling

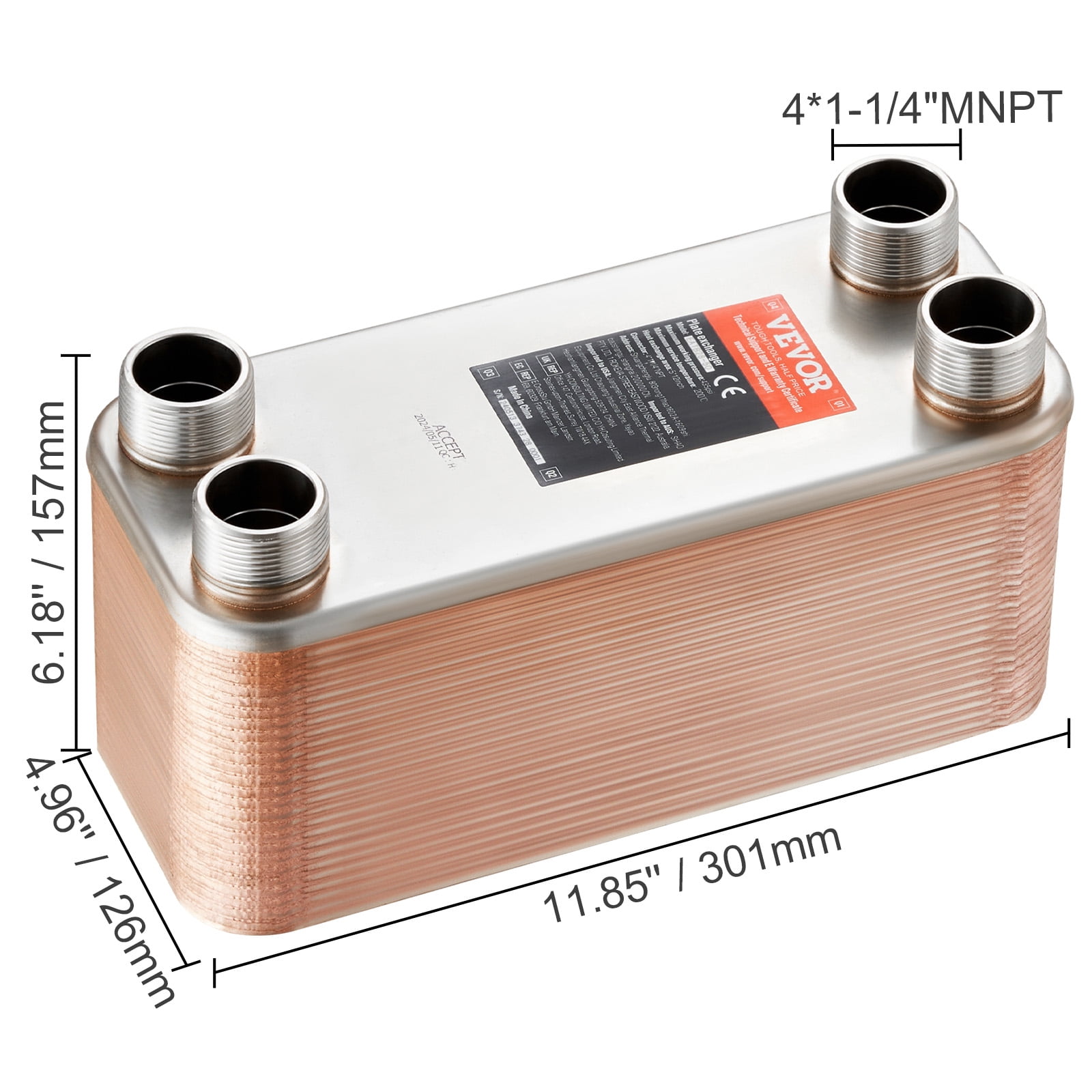

<div> <h3><strong>Prodcut Description</strong></h3> <div><strong>Unleashing Ultimate Heat Efficiency</strong></div> <div> <div>Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.</div> </div> </div> <div> <div> <div><strong>Thickened Interface</strong></div> <div> <div>Our heat exchanger features a 1 ¼” MNPT interface with smooth threads for easy and convenient connection.</div> </div> </div> <div> <div><strong>High Efficiency and Energy Saving</strong></div> <div> <div>This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.</div> </div> </div> <div> <div><strong>Dual Use</strong></div> <div> <div>Equipped with 4 interfaces, the heat exchanger accommodates different media needs with correct piping and operates within -292℉ to 392℉ temperature range.</div> </div> </div> <div> <div><strong>Multiple Sizes Available</strong></div> <div> <div>Our heat exchanger comes in 4 different sizes to meet your needs.</div> </div> </div> <div> <div><strong>High Compatibility</strong></div> <div> <div>The heat exchanger plates are ideal for outdoor wood stoves/boilers, radiant floor heating projects, piping systems, snow melting systems, swimming pools, and other liquid-to-liquid heat transfer applications.</div> </div> </div> <div> <div><strong>Secure to Use</strong></div> <div> <div>For safety, the entire unit is designed with smooth edges, ensuring no hand injuries during use.</div> </div> </div> </div> <div> <h3><strong>Specifications</strong></h3> <div>Model: EATB28-50</div><div>Thermal Efficiency: 90～99%</div><div>Heat Capacity: 500-660K BTU</div><div>Plate Area: 5x12 inch/ 127x305mm</div><div>Plates Quantity(pcs): 50</div><div>Port: 4*1-1/4" MNPT External Thread</div><div>Color: Stainless Steel + Copper Color</div><div>Material: 304/316 Stainless Steel, Solder: 99.9% Copper Brazing</div><div>Net Weight (with Accessories): 18.78lb / 8.52kg</div><div>Product Dimensions (L x W x H): 11.85x4.96x6.18" / 301x126x157 mm </div> <div> <h3><strong>Package Content</strong></h3> <div>Heat Exchanger x 1</div><div>Mounting Brackets x 2 </div></div></div>

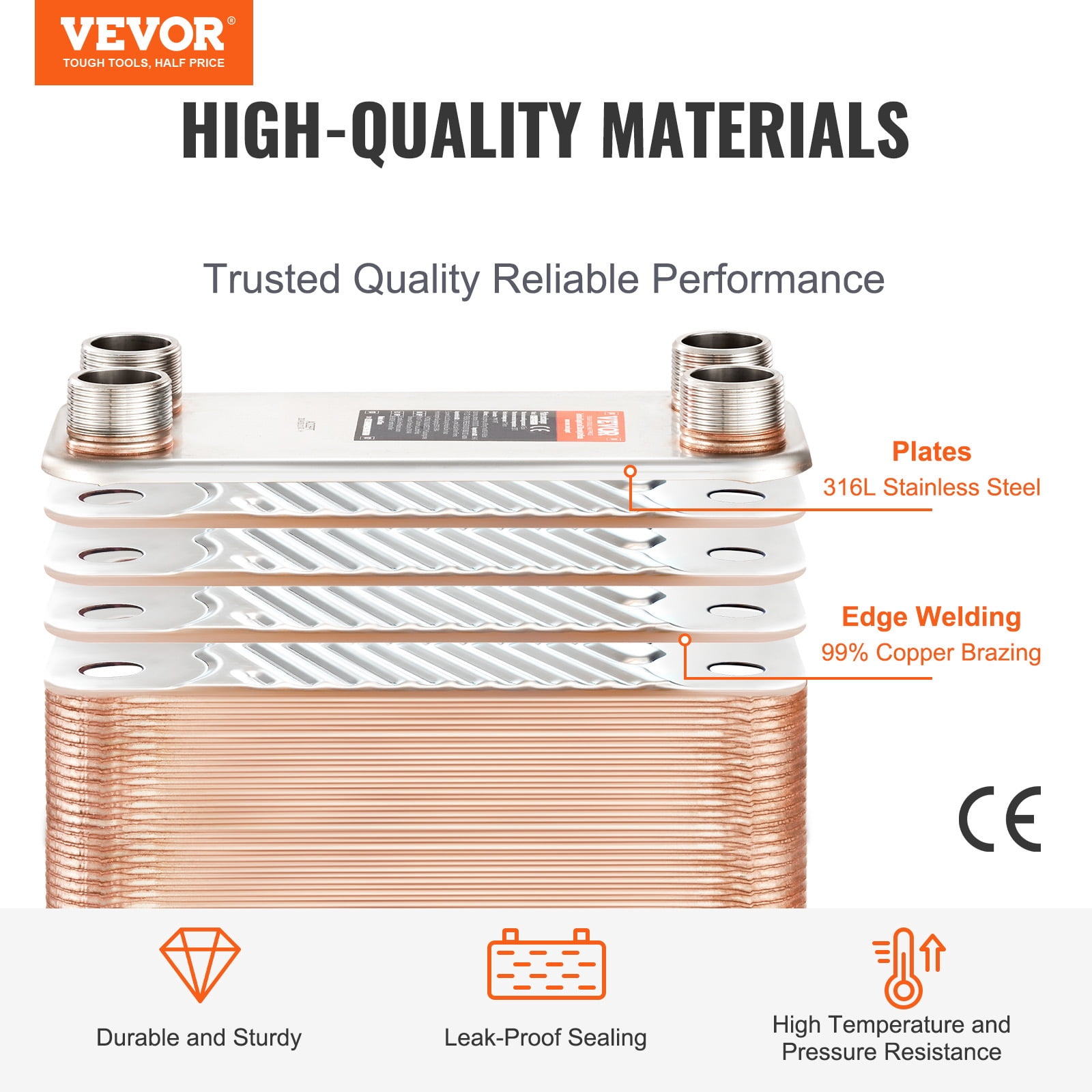

• High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. CE certified for reliable quality.

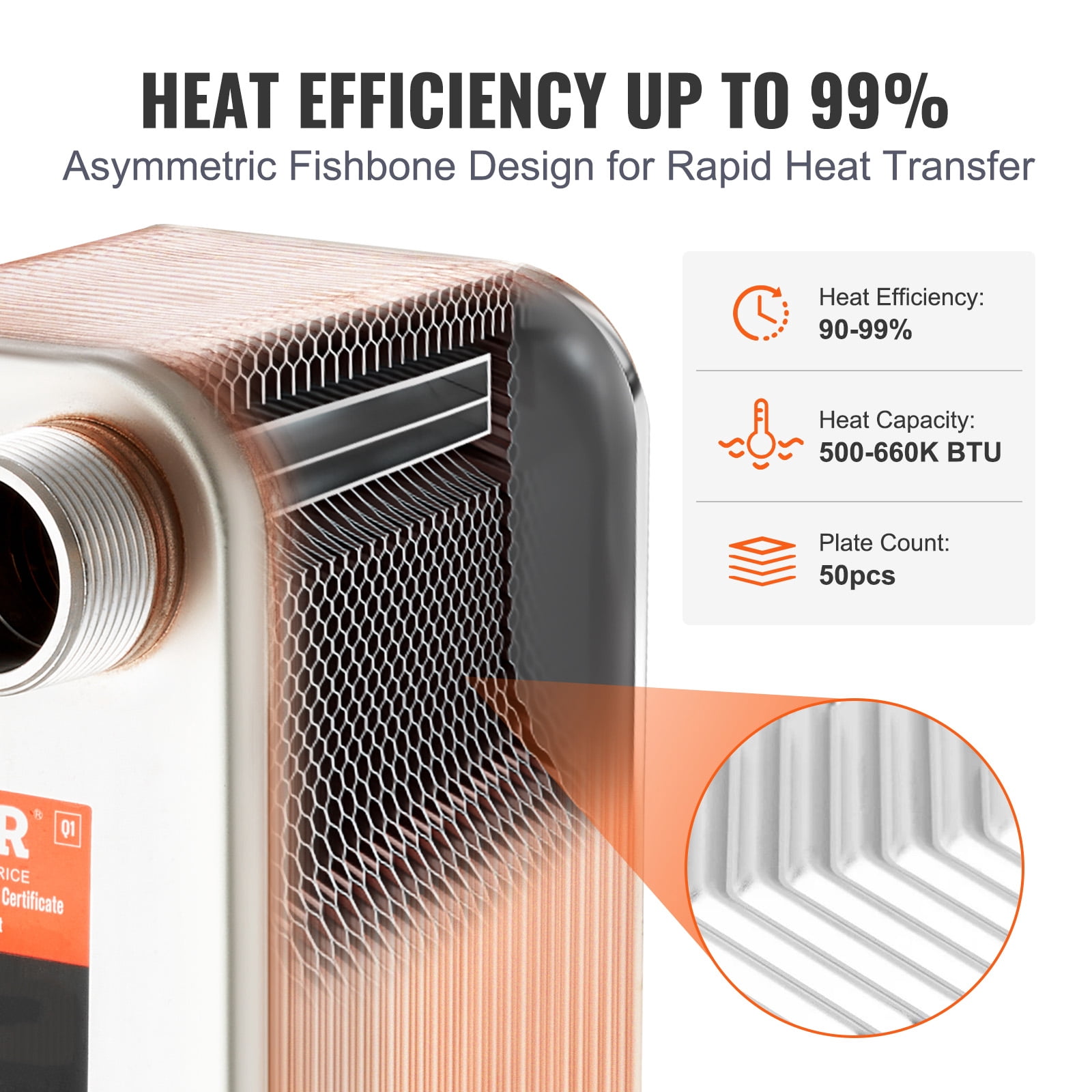

• Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 500-660K BTU per hour, saving pump power and electricity, reducing overall application costs.

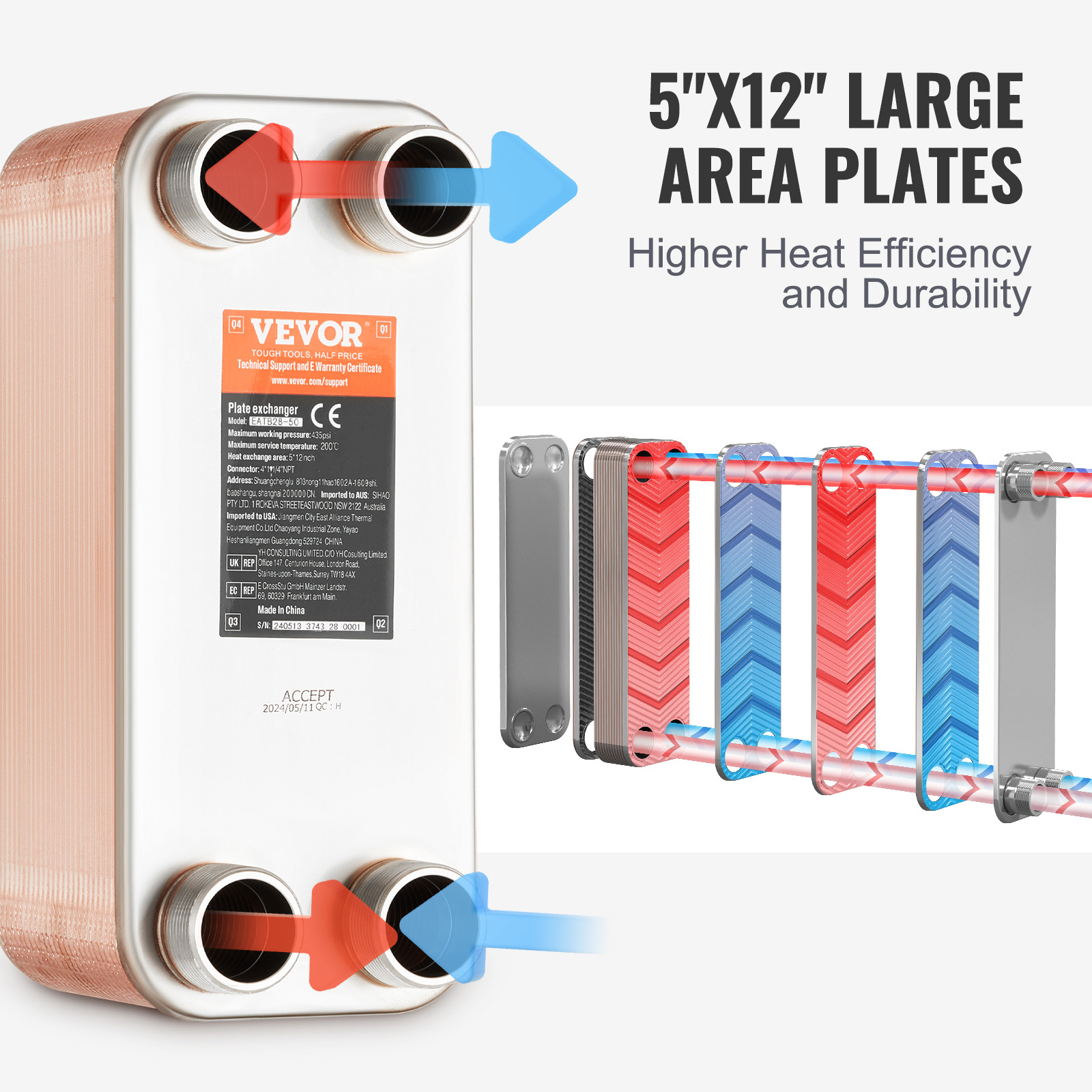

• Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 50 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉.

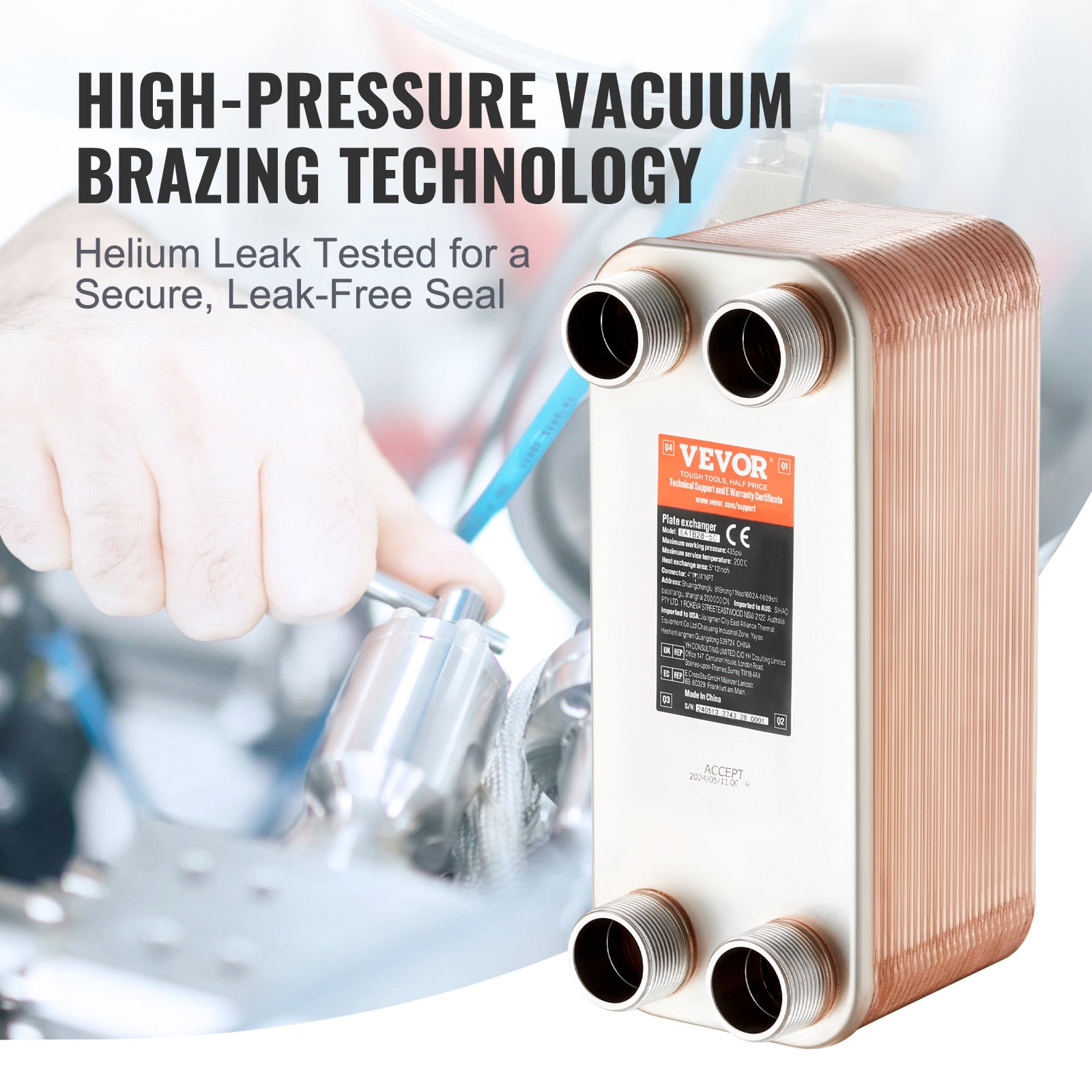

• Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.

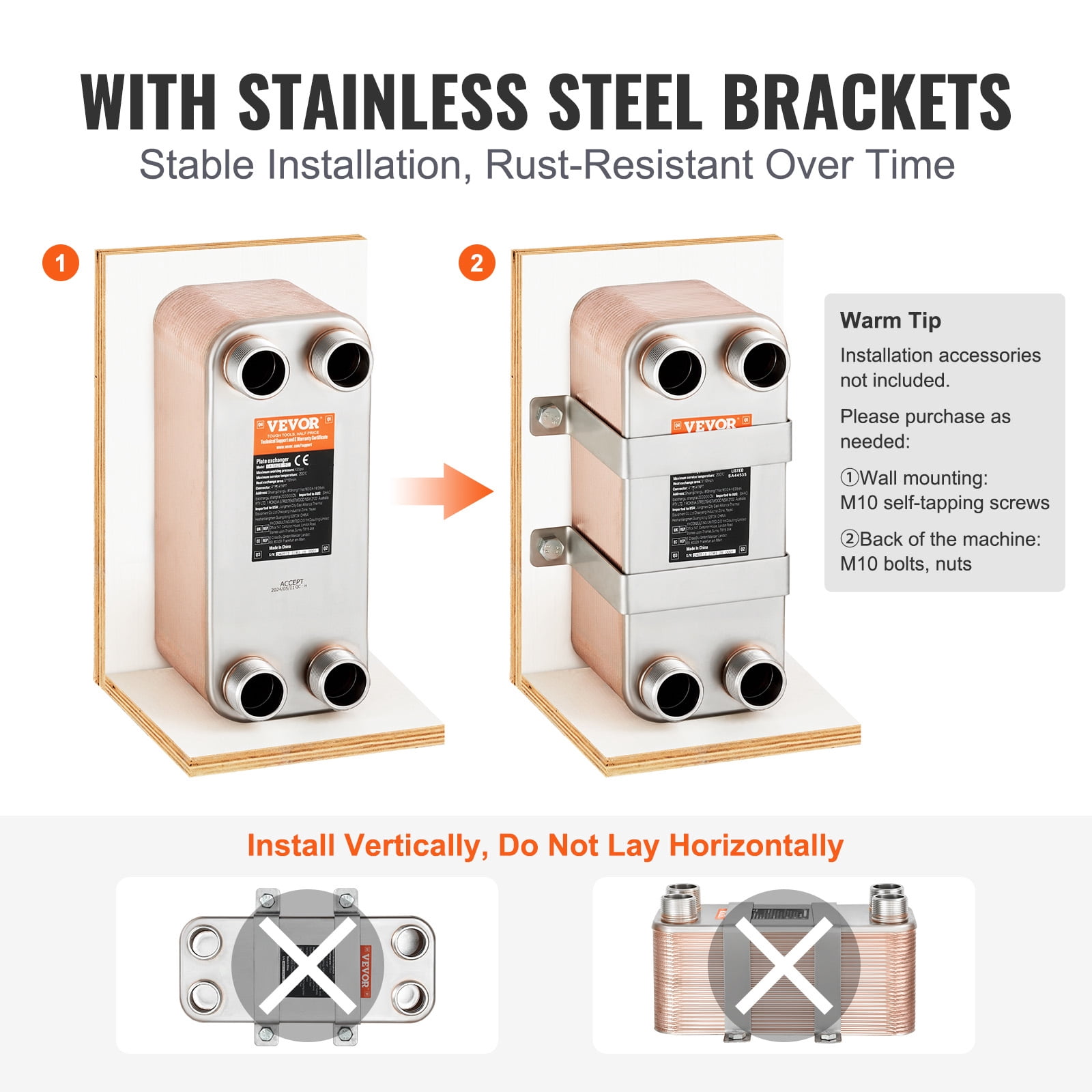

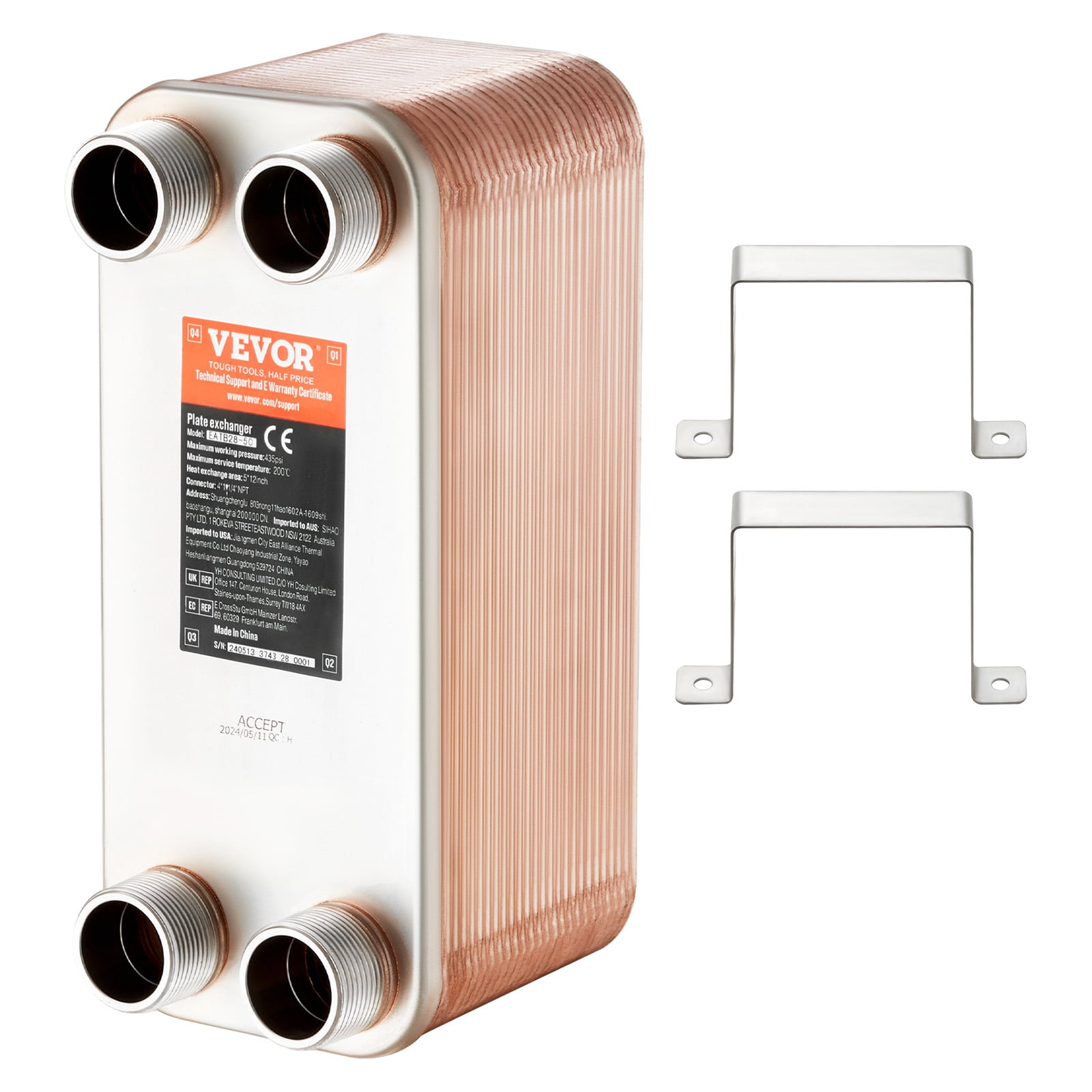

• Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.
