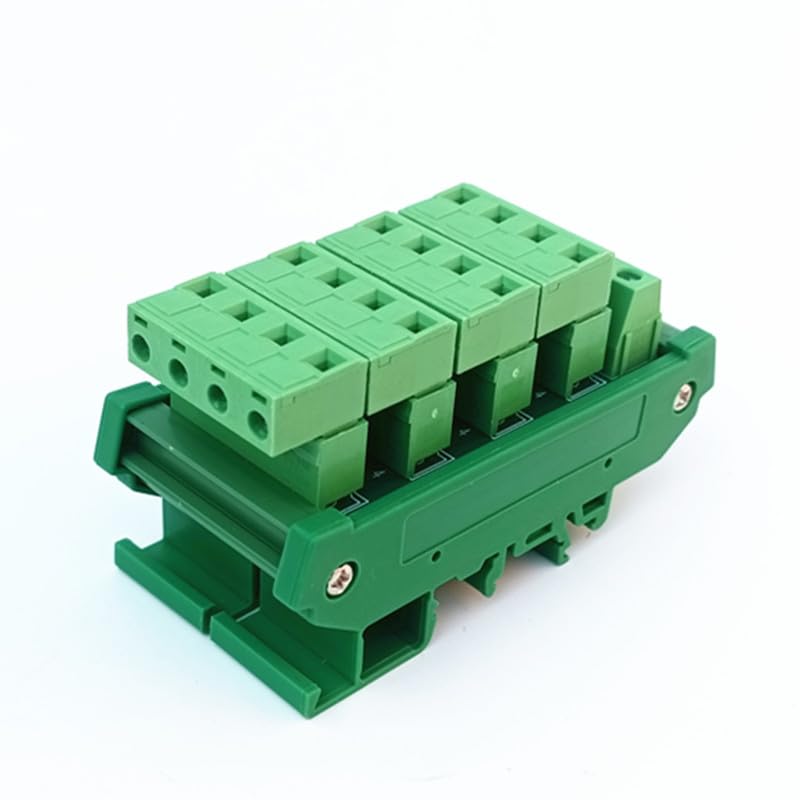

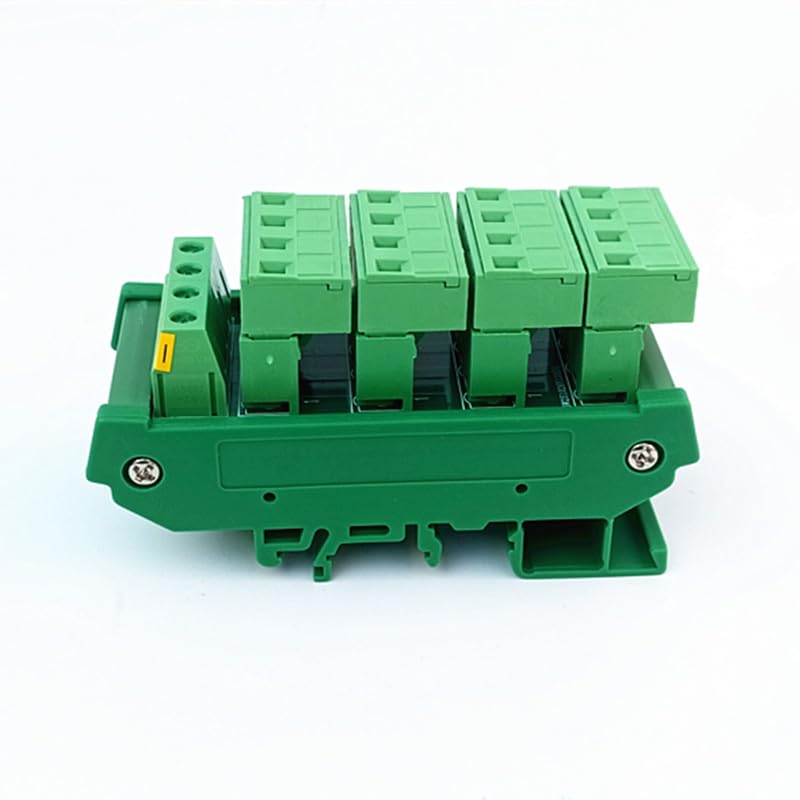

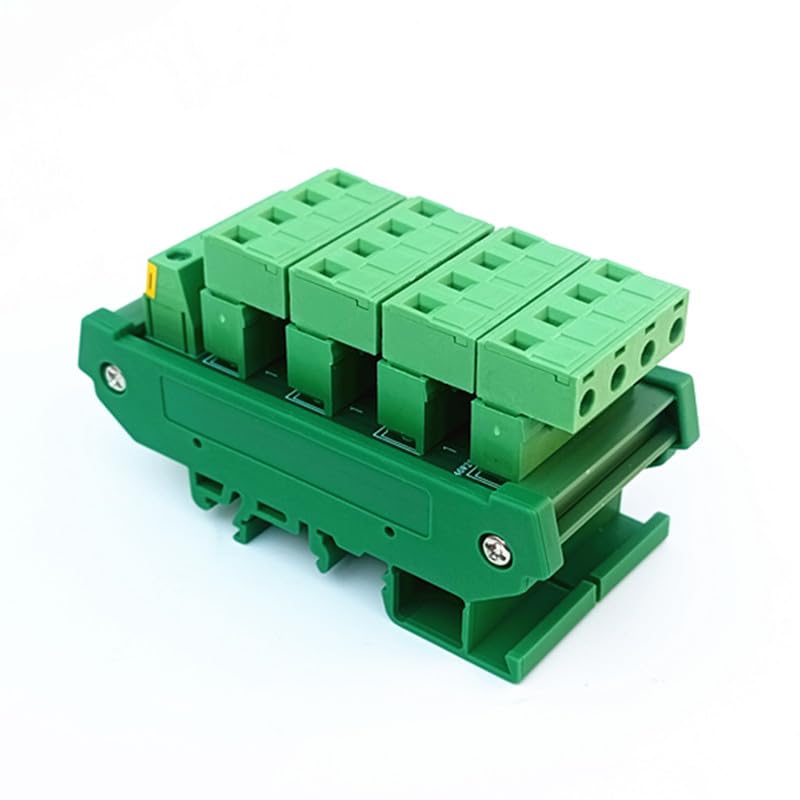

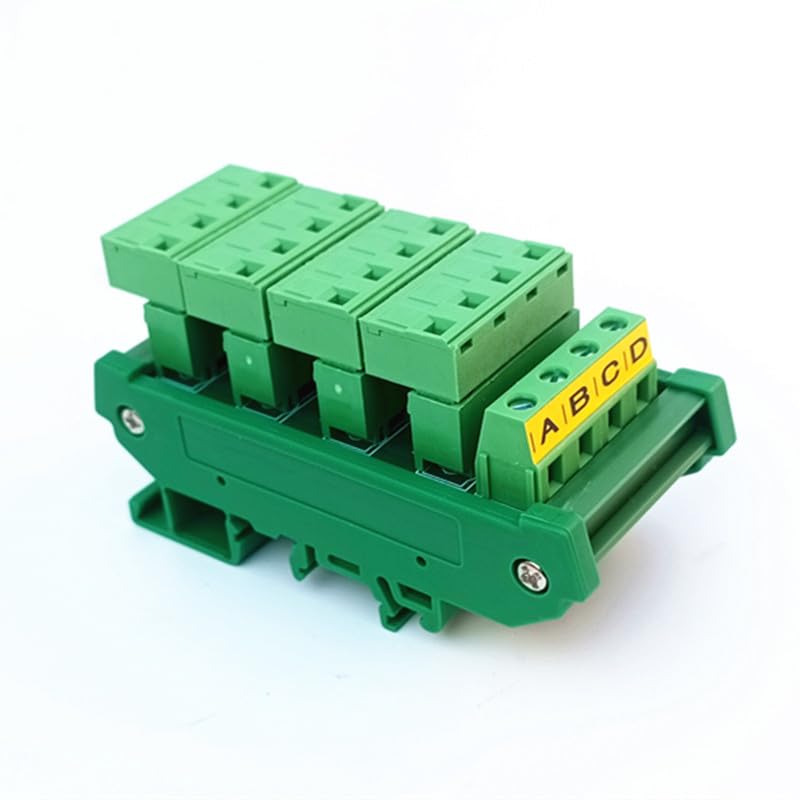

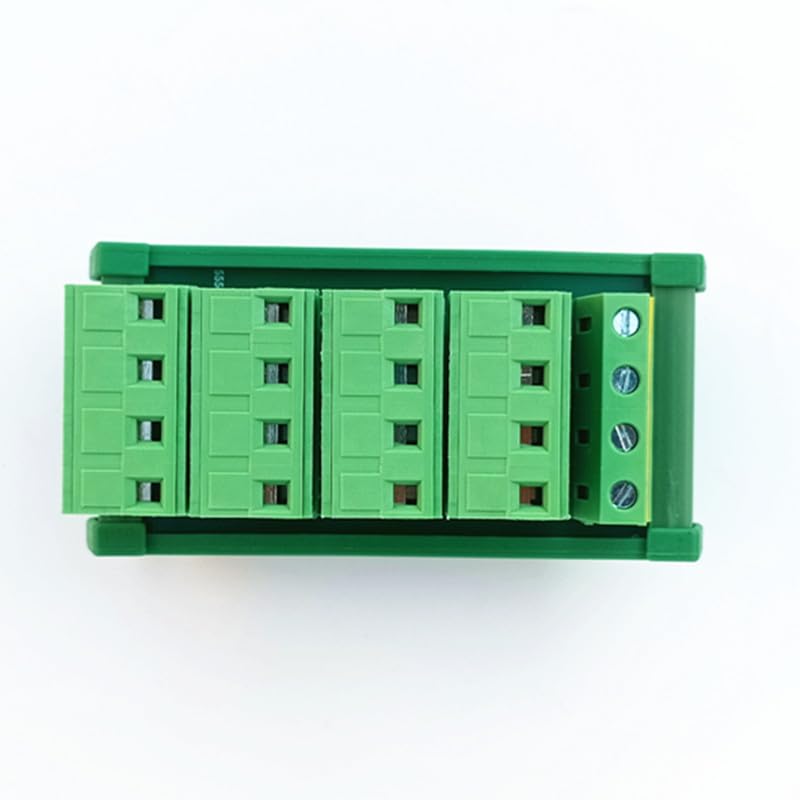

Slim DIN Rail Mount 10A/300V 5x4 Position Pluggable Screw Terminal Block Distribution Module.
Product details
| Management number | 247532557 | Release Date | 2026/08/16 | List Price | US$6.79 | Model Number | 247532557 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Pluggable Terminal Block: Pluggable screw terminal block, top wire connects, pitch 7.62mm / 0.3", strip length 8mm, screws - M3, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp(per position). PCB mount Terminal Block: PCB mount screw terminal block, pitch 7.5mm/2.95", strip length 7mm, screws - M3, Wire range 22AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 16Amp(per position). High quality fireproof nylon material DIN rail mount carrier, can support width 35mm, 32mm or 15mm rail. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB.

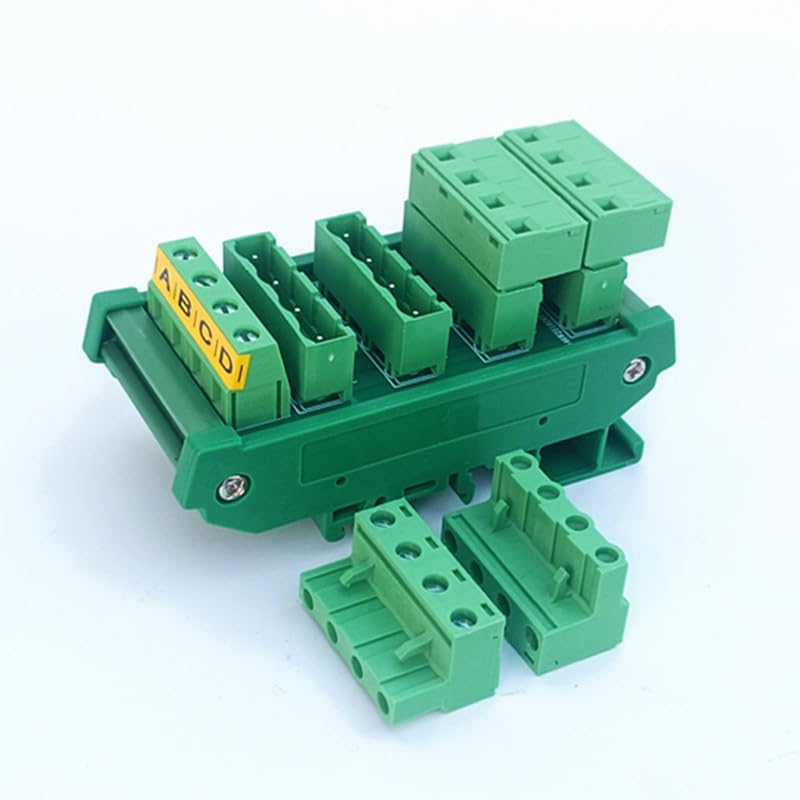

- Pluggable Terminal Block: Pluggable screw terminal block, top wire connects, pitch 7.62mm / 0.3", strip length 8mm, screws - M3, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp(per position).
- PCB mount Terminal Block: PCB mount screw terminal block, pitch 7.5mm/2.95", strip length 7mm, screws - M3, Wire range 22AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 16Amp(per position).

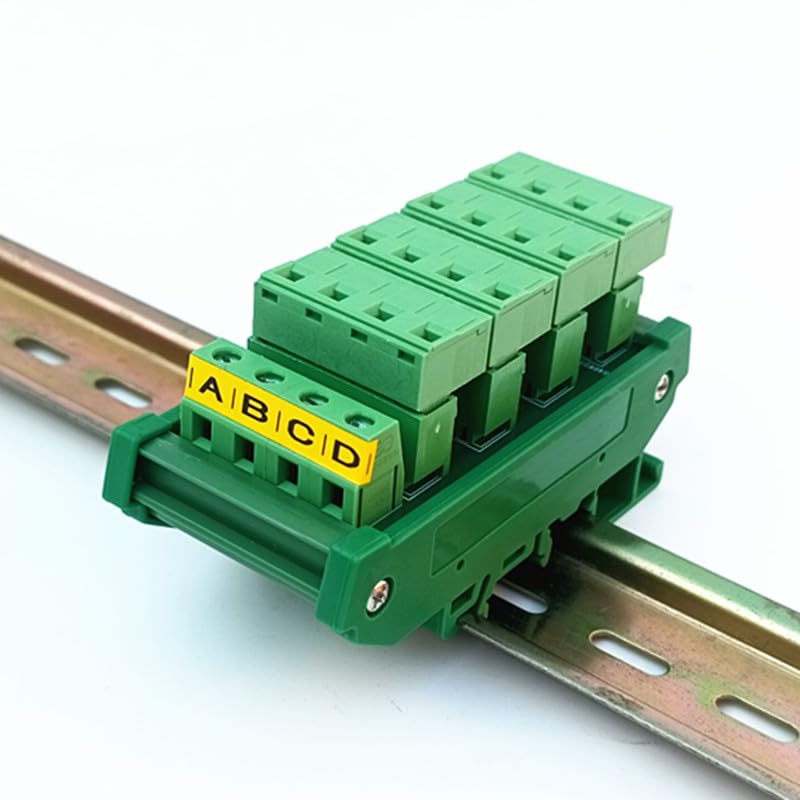

- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm, 32mm or 15mm rail.
- FR-4 fiberglass dual copper layers PCB.
- UL CE CQC certified terminal blocks, UL 94-V0 certified PCB.
| ASIN | B0GV1379KS |
|---|---|
| Color | Green |
| Model | WL-COM-1092-A3 |
| Pitch | 0.1 inches |
| Voltage | 300 volts |
| Brand Name | SZ-WEEL LONG |
| Part Number | WL-COM-1092-A3 |
| Manufacturer | XUHONG |
| Material Type | Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 10 A |
| Number Of Poles | 4 |
| Number of Items | 1 |
| Specification Met | UL |
| Temperature Range | -20to50 °C |
| Number Of Contacts | 4 |
| Included Components | Terminal Block, Connector, Din Rail Mount,Module |
| Item Dimensions W x H | 1.5"W x 1.9"H |
| Upper Temperature Rating | 50 °C |
