Mobile Hydraulic Oil Cooler, 0-80 GPM, 30HP, with Dual 12V Fans with or Without Bypass (8 Bar (116 psi) Bypass)
Product details
| Management number | 222446953 | Release Date | 2026/05/04 | List Price | US$479.60 | Model Number | 222446953 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

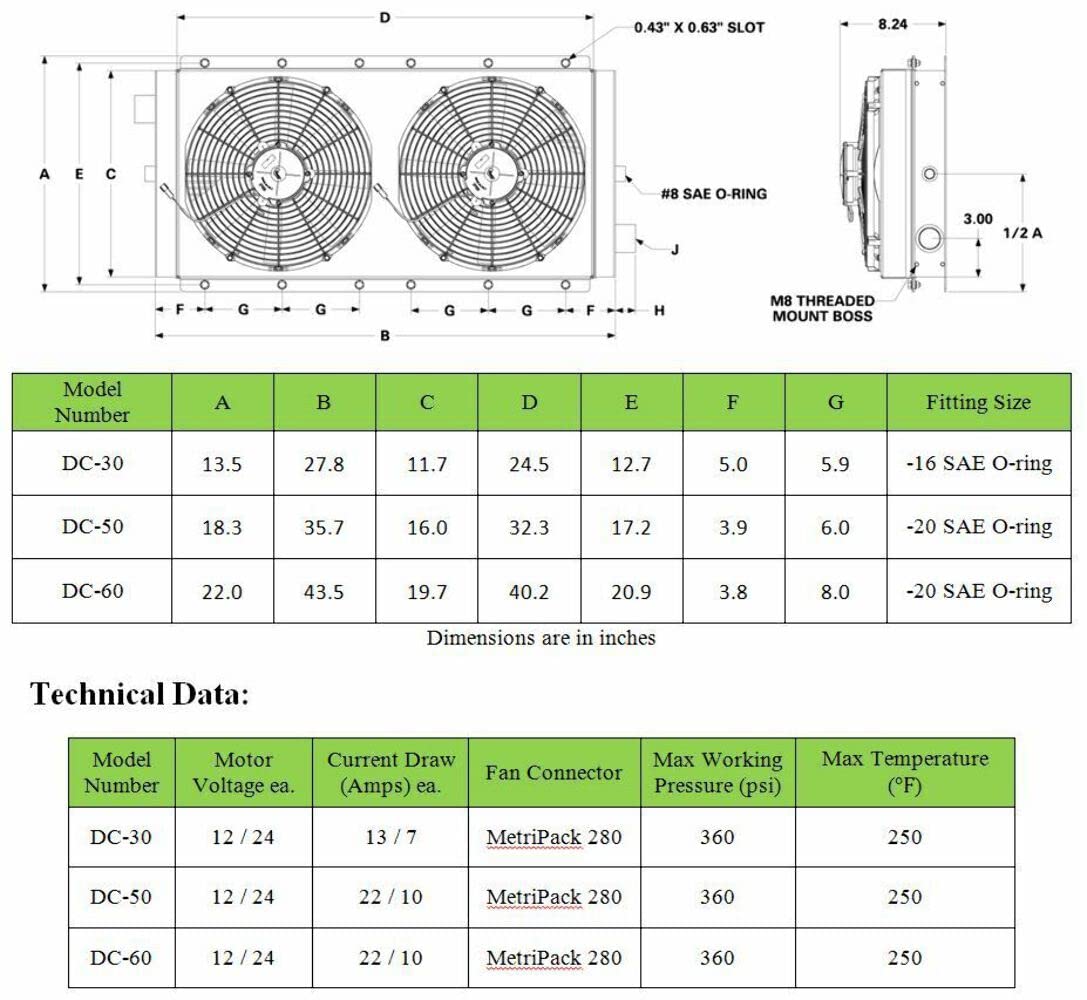

Heavy Duty Aluminum Bar and Plate Hydraulic Oil Cooler w/ 12V Fan & Shroud DC-30 INSTALLATION SHOULD BE COMPLETED BY A TRAINED PROFESSIONAL! Assembly needs to be installed on the Low Pressure side of hydraulic circuit Applications: Mobile and Industrial Hydraulics Our Part Number: 24639 – No Bypass 26301 – 2 Bar (29 psi) Bypass 26302 – 5 Bar (73 psi) Bypass 26303 – 8 Bar (116 psi) Bypass Core (Finned area) Dimensions: 23.9” x 11.7” x 2.56” Inlet: -16 SAE O-Ring Seal (1-5/16-12 UN-2B) Outlet: -16 SAE O-Ring Seal (1-5/16-12 UN-2B) Overall Dimensions: 29.8” x 13.5” x 8.2 Max Working Temp: 250°F Max Working Pressure: 360 psi Fan Data: 12 Volt DC Electric Motor 13AMP Current Draw MetriPack 280 Connector (Male and Female connectors included) Flow Range: 0-80 GPM Notes: Reference performance graphs for proper sizing and mounting configuration 100% LEAK TESTED FROM THE FACTORY GUARANTEED FIT
- Heavy Duty Aluminum Bar and Plate Construction
- 4 Variations of Bypass Ratings
- No Bypass, 2 Bar Bypass, 5 Bar Bypass, 9 Bar Bypass
- #16 SAE O-ring connections, 12V DC Fan
- Auxiliary port for optional temperature or pressure sensor installation
| Voltage | 12 Volts |
|---|---|
| Brand Name | American Cooling Solutions |
| Unit Count | 1.0 Count |
| Item Weight | 35 Pounds |
| Part Number | DC12V-30 |
| Manufacturer | American Cooling Solutions |
| Material Type | Aluminum |
| Cooling Method | forced air |
| Number of Items | 1 |
| Compatible Devices | Transmission Coolers, Heavy Machinery/Vehicles |
| Power Connector Type | MetriPack 280 |
| Maximum Rotational Speed | 80 RPM |
