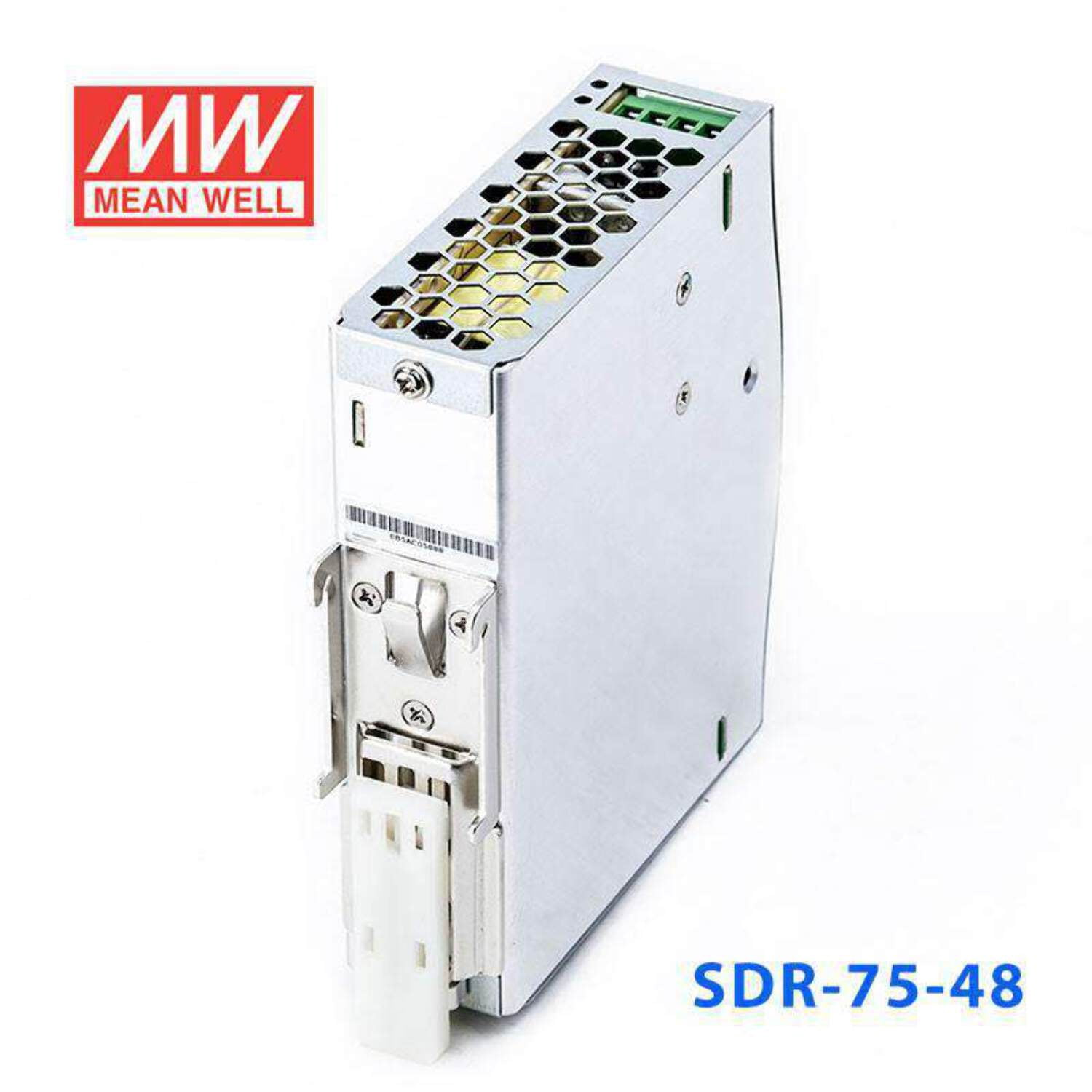

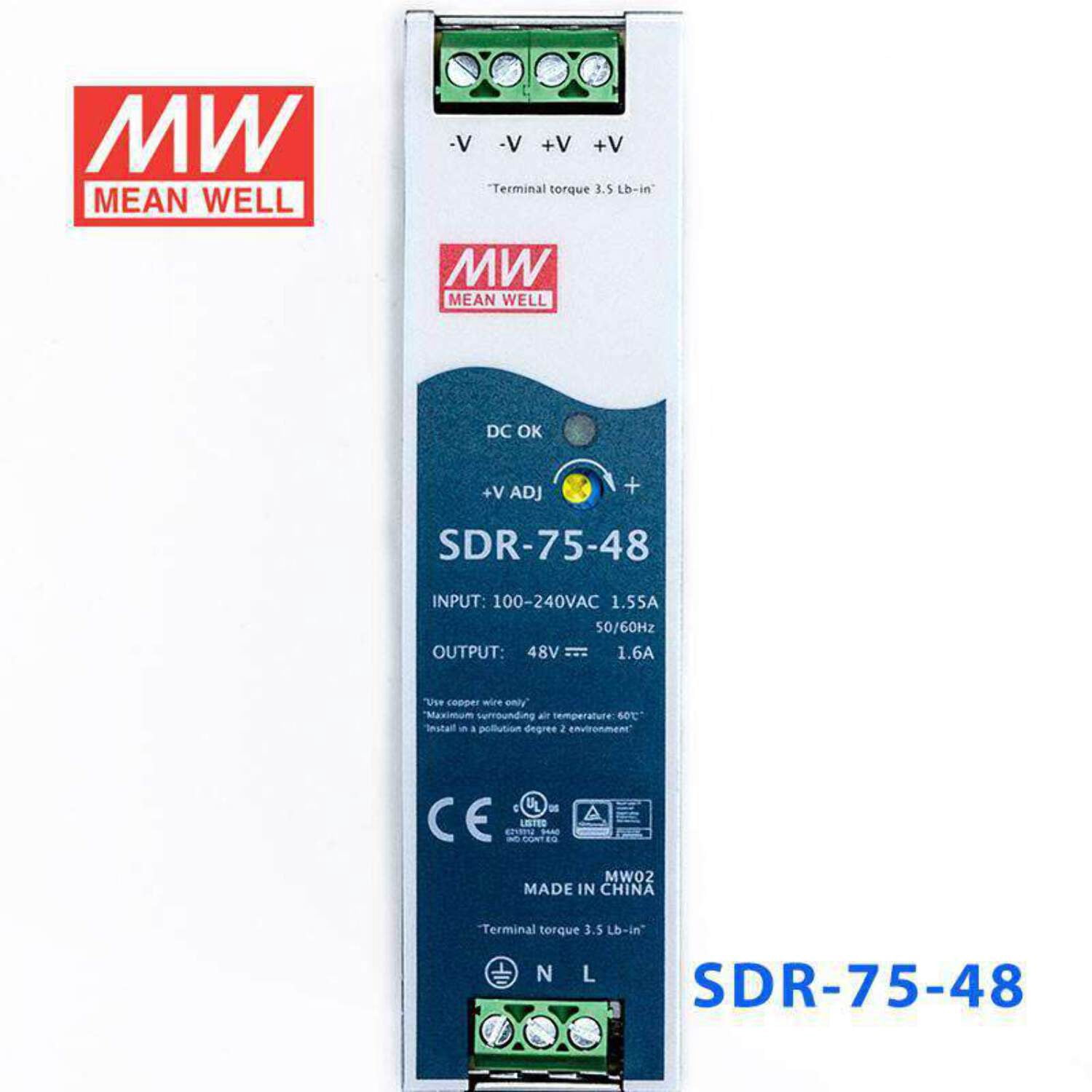

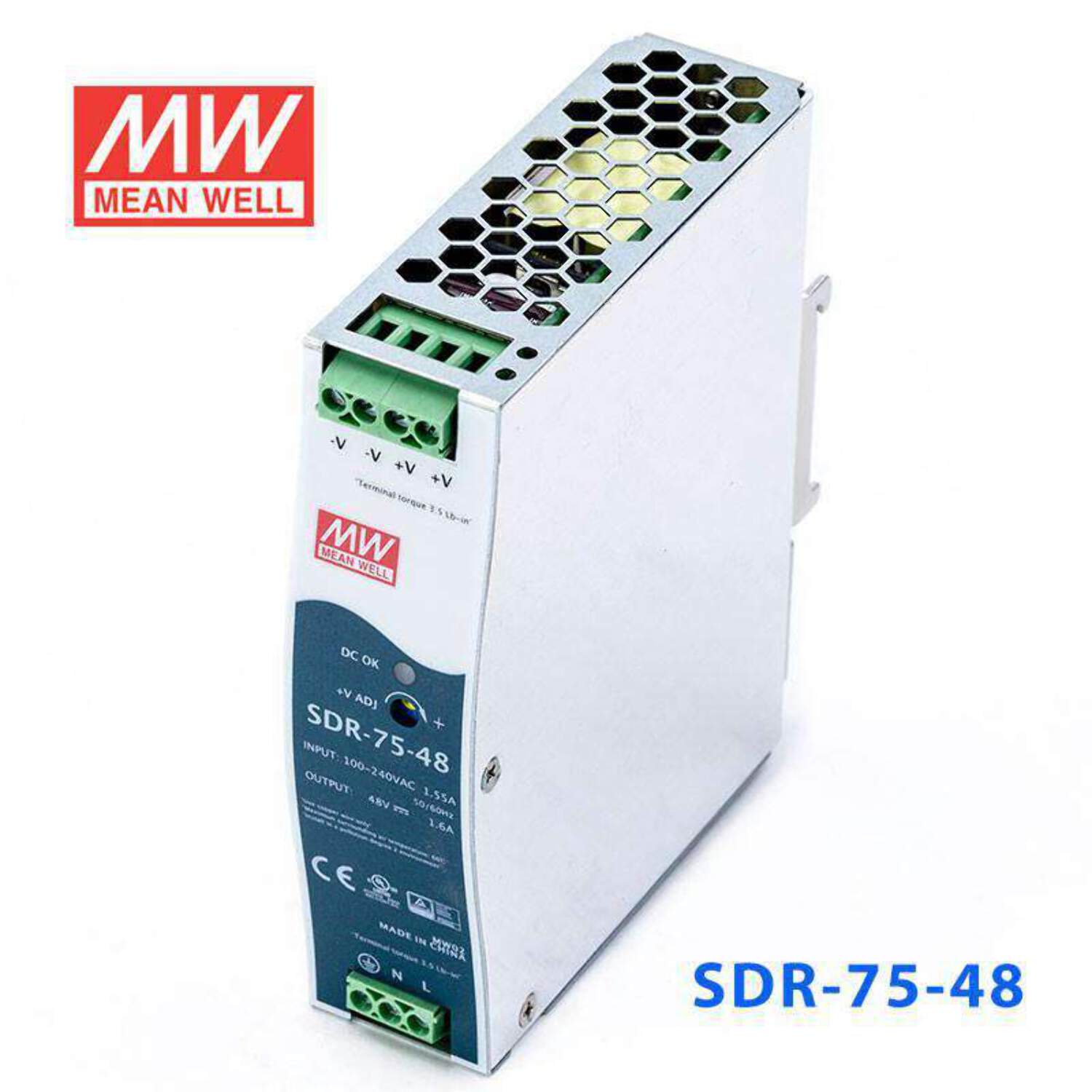

Mean Well SDR-75-48 Single Output Industrial Power Supply 75W 48V - DIN Rail

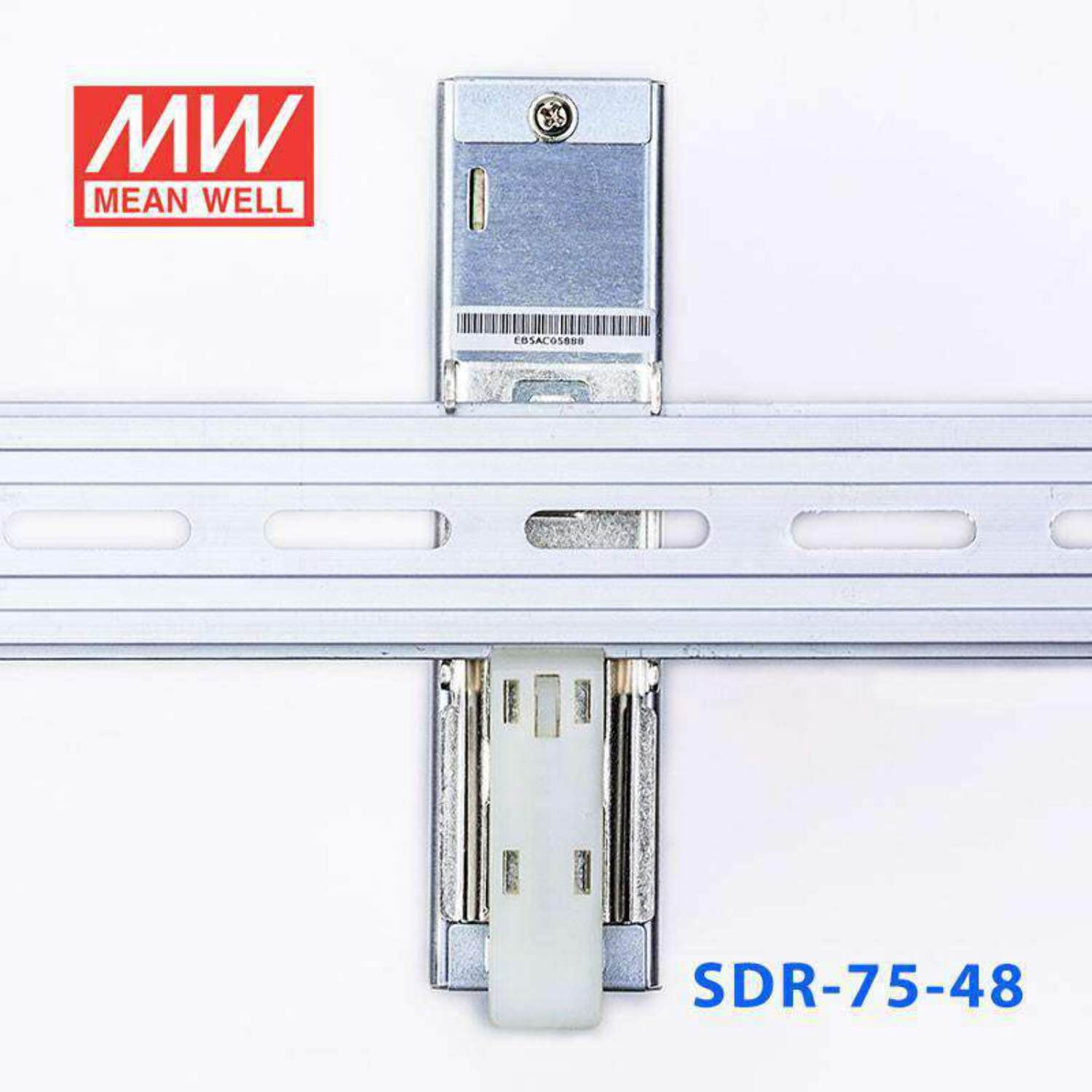

<em></em> Features<table><tbody><tr><td>High efficiency up to 94%</td></tr><tr><td>Universal AC input / Full range</td></tr><tr><td>Protections: Short circuit / Overload / Over voltage / Over temperature</td></tr><tr><td>Cooling by free air convection</td></tr><tr><td>Can be installed on DIN rail TS-35 / 7.5 or 15</td></tr><tr><td>UL508(industrial control equipment) approved</td></tr><tr><td>EN61000-6-2(EN50082-2) industrial immunity level</td></tr><tr><td>150% peak load capability</td></tr><tr><td>Comply with SEMI F47</td></tr><tr><td>3 years warranty</td></tr></tbody></table><br><em></em> General Specification&nbsp;<table><tbody><tr><td><strong>AC input voltage range</strong></td><td>88~264VAC; 124~370VDC</td></tr><tr><td><strong>AC inrush current (max.)</strong></td><td>Cold start, 50A at 230VAC</td></tr><tr><td><strong>DC adjustment range</strong></td><td>12V: 12~14V (only for SDR-75/120), 24V: 24~28V, 48V: 48~55V</td></tr><tr><td><strong>Overload protection</strong></td><td>Normally works within 110%~150% rated output power for 3 seconds and then shut down output voltage with auto-recovery (re-power on to recover for SDR-75)</td></tr><tr><td><strong>Overload protection</strong></td><td>&gt;150% rated power or short circuit, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds</td></tr><tr><td><strong>Over voltage protection Range</strong></td><td>14~17V for 12V model</td></tr><tr><td><strong>Over voltage protection Type</strong></td><td>Shut down o/p voltage, re-power on to recover</td></tr><tr><td><strong>Over temp. protection</strong></td><td>Re-power on to recover</td></tr><tr><td><strong>Withstand voltage</strong></td><td>I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC</td></tr><tr><td><strong>Working temperature</strong></td><td>-30~+70°C</td></tr><tr><td><strong>Safety standards</strong></td><td>UL508, TUV EN60950-1 approved</td></tr><tr><td><strong>EMC standards</strong></td><td>EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3; SEMI</td></tr><tr><td><strong>Connection</strong></td><td>I/P: 3 poles, O/P: 4 poles screw DIN terminal</td></tr><tr><td><strong>Dimension (WxHxD)(mm)</strong></td><td>32x125.2x102</td></tr></tbody></table>
