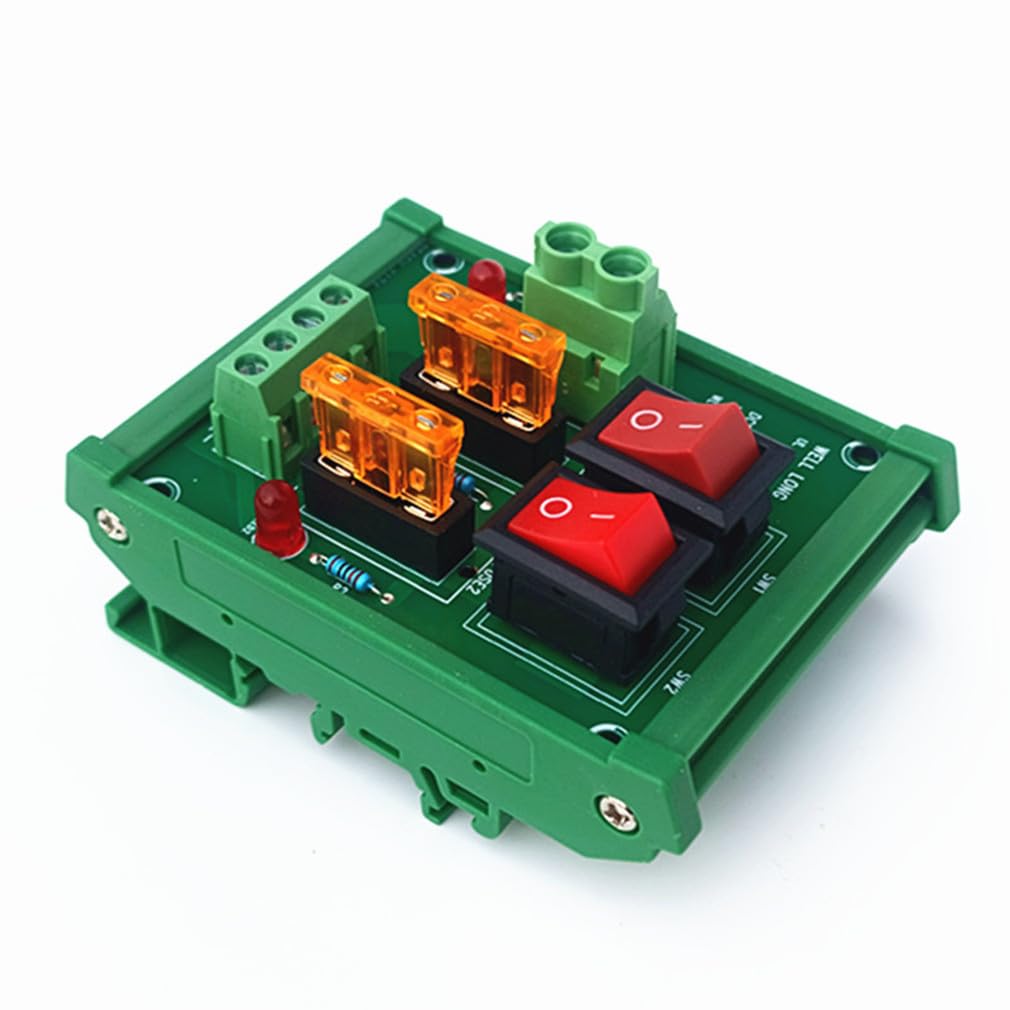

DIN Rail Mount 2 Position Switch Power Distribution Module Fuse Splitter Board AC/DC 5-32V
Product details
| Management number | 247411105 | Release Date | 2026/08/16 | List Price | US$7.59 | Model Number | 247411105 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DIN rail mounted distribution fuse module boardFR-4 fiberglass double copper layer printed circuit board.High-quality, fire-resistant nylon DIN-rail mounting bracket supports rail widths up to 35mm 32mm 15mm.Rocker switch ON/OFF power output for Each channel With indicator LED With switch power ON LED indication.Fuse holder for Medium Blade Fuse, factory installed fuse is 5Amp.Working voltage: AC or DC 5~32V, maximum output current 5Amps Each channel, can replace the fuse according to your needs.Input Terminals: Pitch - 7.62mm/0.3”, 30A per position, Wire gauge 26~10 AWG, Stripped wire length 8mm, Metric M3 slotted screws.
- DIN rail mounted distribution fuse module FR-4 fiberglass double copper layer printed circuit board
- High-quality, fire-resistant nylon DIN-rail mounting bracket supports rail widths up to 35mm 32mm 15mm.
- Rocker switch ON/OFF power output for Each channel With indicator LED With switch power ON LED indication.
- Working voltage: AC or DC 5~32V, maximum output current 5Amps Each channel, can replace the fuse according to your needs.
- Input Terminals: Pitch - 7.62mm/0.3”, 30A per position, Wire gauge 26~10 AWG, Stripped wire length 8mm, Metric M3 slotted screws.
| ASIN | B0F32HM5PK |
|---|---|
| Color | Green |
| Model | DCSF-1085B2-A3 |
| Pitch | 0.1 inches |
| Voltage | 32 |
| Brand Name | SZ-WEEL LONG |
| Unit Count | 1 Count |
| Part Number | DCSF-1085B2-A3 |
| Manufacturer | XUHONG |
| Material Type | Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 5 A |
| Number Of Poles | 2 |
| Number of Items | 2 |
| Specification Met | UL |
| Temperature Range | -20to50 °C |
| Number Of Contacts | 2 |
| Included Components | Terminal Block, Screw terminal, Din Rail Mount |
| Number of Positions | 2 |
| Item Dimensions W x H | 2.44"W x 1.18"H |
| Upper Temperature Rating | 50 °C |
