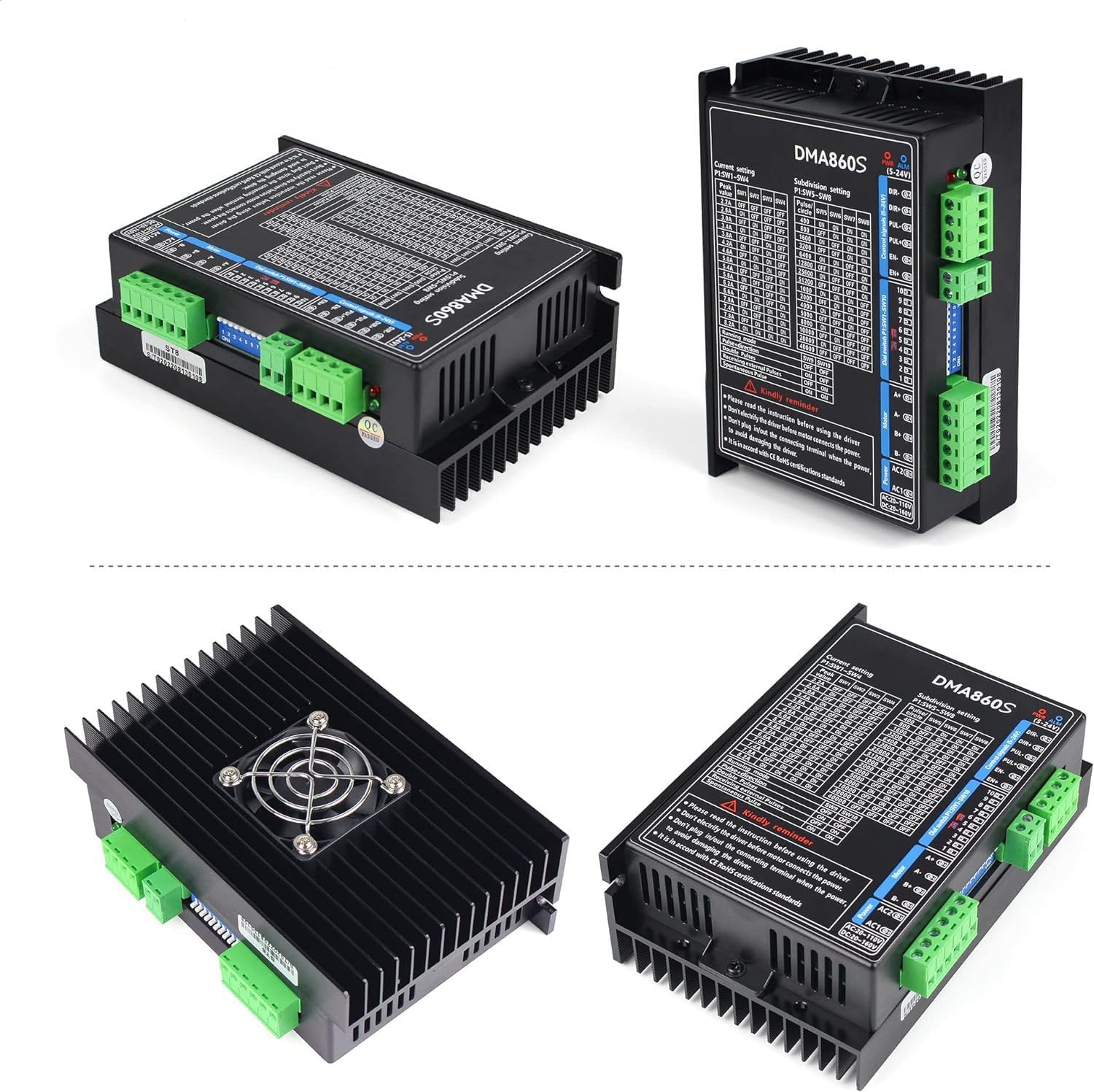

CNC DMA860S Digital Stepper Driver | AC18-110V and DC18-160V, 8.2A, 256 Microstep, 2-Phase Stepper Motor Controller,Nema23 Nema24 Nema34 Stepper Motor Driver
US$11.60
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by isc2chapter-liny.org
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$11.60
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by isc2chapter-liny.org
Free 30-day returns Details
Product details
| Management number | 247181495 | Release Date | 2026/08/16 | List Price | US$11.60 | Model Number | 247181495 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【 EXCELLENT PERFORMANCE 】DMA860S 2 phase stepper motor driver is a cost-effective subdivision driver designed based on PI control algorithm. High speed and high torque output, low noise, low vibration, and low heat. It has overvoltage, undervoltage, phase current and total current overcurrent protection. The input and output control signal all use photoelectric isolation.
- 【 16 MICRO -STEP】DMA860S Stepper Motor Driver can set any micro -step in 256 and any current value in the rated current, which can meet the application needs of most small devices.The optional values of micro-step resolutions are 400, 800, 1000, 1600, 2000, 3200, 4000, 5000, 6400, 8000, 10000, 12800, 20000, 25600, 40000, 51200.And the optional values of current parameters are 2.2A, 2.6A, 3.0A, 3.4A, 3.8A, 4.2A, 4.6A, 5.0A, 5.4A, 5.8A, 6.2A, 6.6A, 7.0A, 7.4A, 7.8A, 8.2A. ( The current is halved after the IS is stationary )
- 【 INPUT VOLTAGE 】Input Voltage: 20-110V AC or 20-160V DC; Output Peak Current: 2.2A-8.2A; Optical isolation differential signal input,the input pulse response frequency can reach up to 300KHz.The pulse, direction and enable terminals have constant current input function, which can be directly connected to the input signal, Instead of adding a series resistor for step-down current-limiting protection.
- 【AUTOMATIC CORRECTION FUNCTION 】DMA860S Stepping Motor Controller integrated with parameter self-tuning function, which can automatically generate operating parameters for different motors, giving full play to the performance of the motor.
- 【 APPLICATION MOTORS AND SCENARIOS 】It Can drive 4,6,8-wire two-phase stepper motor,suitable for Nema23,Nema24,Nema34 and Nema42 Stepper Motor.
- 【 OCCASION APPLICABLE 】Suitable for various small and medium -sized automated equipment and instruments, e.g: Marking Machines, Cutting Machines, Carving Machines, CNC Router machine , Automatic Assembly Equipment, etc. The best application effect in users expects small noise, high -speed device.
- 【AFTER SALES SERVICE】 If you get stuck, Contact us with any questions that arise. Our customer service team is always ready to assist with any questions you may have.
| ASIN | B0D4V4D91V |
|---|---|
| Color | Black |
| Brand Name | YIDOFENG |
| Unit Count | 1 Count |
| Part Number | XUS-DMA860S-1PA |
| Display Type | LED |
| Manufacturer | XUS-DMA860S-1PA |
| Material Type | Polycarbonate (PC) |
| Number of Items | 1 |
| Included Components | DMA860S Stepper Motor Driver |
| Operating Temperature | 60 °C |
