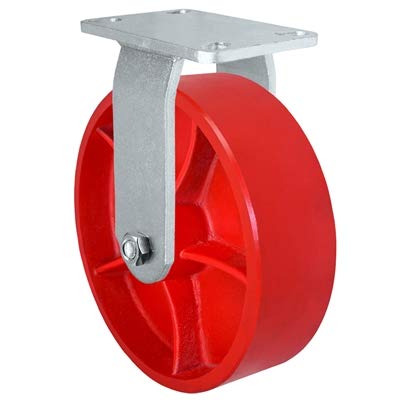

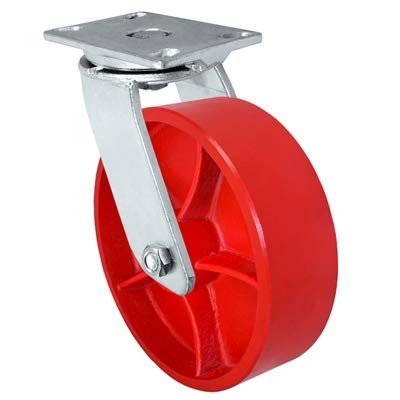

CasterHQ - 10" x 3" Heavy Duty 2 Swivel & 2 Rigid Caster - Red Ductile Steel Wheel - 10,000 lbs Capacity Per Caster
Product details
| Management number | 228702118 | Release Date | 2026/05/31 | List Price | US$236.00 | Model Number | 228702118 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
10" x 3" Heavy Duty Swivel Caster - Red Ductile Steel Wheel - 2,500 lbs Capacity Per Caster This listing is for a 10 inch diameter by 3 inch tread width Swivel Caster combined with a Red Duclite Steel Wheels. These Casters are a Heavy Duty Series of Casters with a weight capacity of 2,500 lbs per caster. For more information please checkout our features and technical specifications. Features Heavy Duty Drop Forged Top Plate and Yoke Base Manufactured from 1045 Steel 3/8" Round Edge Steel Legs, Double Welded 3/4" Axle and Lock Nut Zinc Plated Finish Wheel Diameter: 10" Tread Width: 3" Wheel Type: Red Ductile Steel Wheel Bearing Type: 1" Roller Bearing w/ 3/4" Spanner Bushing (Precision Bearings Available) Load Capacity: 10,000 lbs Set of 4 Overall Height: 11-1/2" Swivel Radius: 7-1/2" Mounting Plate Size: 4-1/2" x 6-1/4" Bolt Hole Pattern: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" Attaching Mounting Bolt Hole Size: 1/2"
- Wheel Diameter: 10" / Tread Width: 3"
- Overall Height: 11-1/2"
- Swivel Radius: 7-1/2"
- Mounting Plate Size: 4-1/2" x 6-1/4"
- Bolt Hole Pattern: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
| UPC | 733569707454 |
|---|---|
| ASIN | B08GGBXTRB |
| Color | Red |
| Model | 60CS1030X4 |
| Brand Name | CasterHQ |
| Unit Count | 1.0 Count |
| Caster Type | Swivel |
| Item Weight | 125 Pounds |
| Part Number | 60CS1030X4 |
| Wheel Width | 2 Inches |
| Manufacturer | CasterHQ |
| Load Capacity | 10000 Pounds |
| Material Type | Red Ductile |
| Mounting Type | Plate Mount |
| Surface Recommendation | Multi-Surface |
