300W Thin-Plate Laser Spot Welder 2-in-1 Handheld Laser Welding Cutting Machine Air-cooled Portable Fiber Laser Welder for Stainless steel Carbon Steel Copper Iron Class 1 0.39mW

ABOUT USWTTTOOLSWe are the subsidiary company of SFX Laser. We are the manufacture of laser products since 2004. Both of us share the same goal: Quality Products Move the World. We have set up many R&D Centers to produce high quality products and continue to innovate according to new technology.Your ordering products have passed many test before sending from our factory.All our machine have complied with local rules and regulations and have certificates.After-sale Center in NY, US, CA, US. TECHINICAL PARAMETERSModel: DGW-300Average Power: 300 WPeak Power: 600 WLaser Wavelength: 1080 ± 5 nmPulse Frequency: 1 – 300 HzModulation Frequency: 1 – 5000 HzMax Single Pulse Energy: 6J /10 msOutput Fiber Length: 2 – 3 mCore Diameter: 100 μmInput Power: ≤ 2,000 WCooling Method: Air CoolingTouchscreen Size: 5 in (Laser Control System)Ambient Temperature: −20 ~ 55 °CProduct Dimensions: 14.7 × 7.5 × 13.0 inProduct Weight: 26.5 lbsSPECIFICATIONS2-IN-1 WELDING AND CUTTING - Unlike single-function welders, our portable spot laser welding machine integrates welding and micro cutting in one unit. It supports thin--plate welding of 0.1-1.5mm, micro cutting thickness of 0.1- 2mm for thin sheet cutting. PORTABLE DESIGN - Compact and easy to move, this portable laser welder is designed for flexible use across different working conditions. The 5-inch HD color touchscreen provides a clear, intuitive interface.WIDE APPLICATIONS - Built for ultra-thin sheet welding, this laser spot welding machine delivers concentrated energy with a small heat-affected zone, helping reduce burn-through and deformation on thin materials.

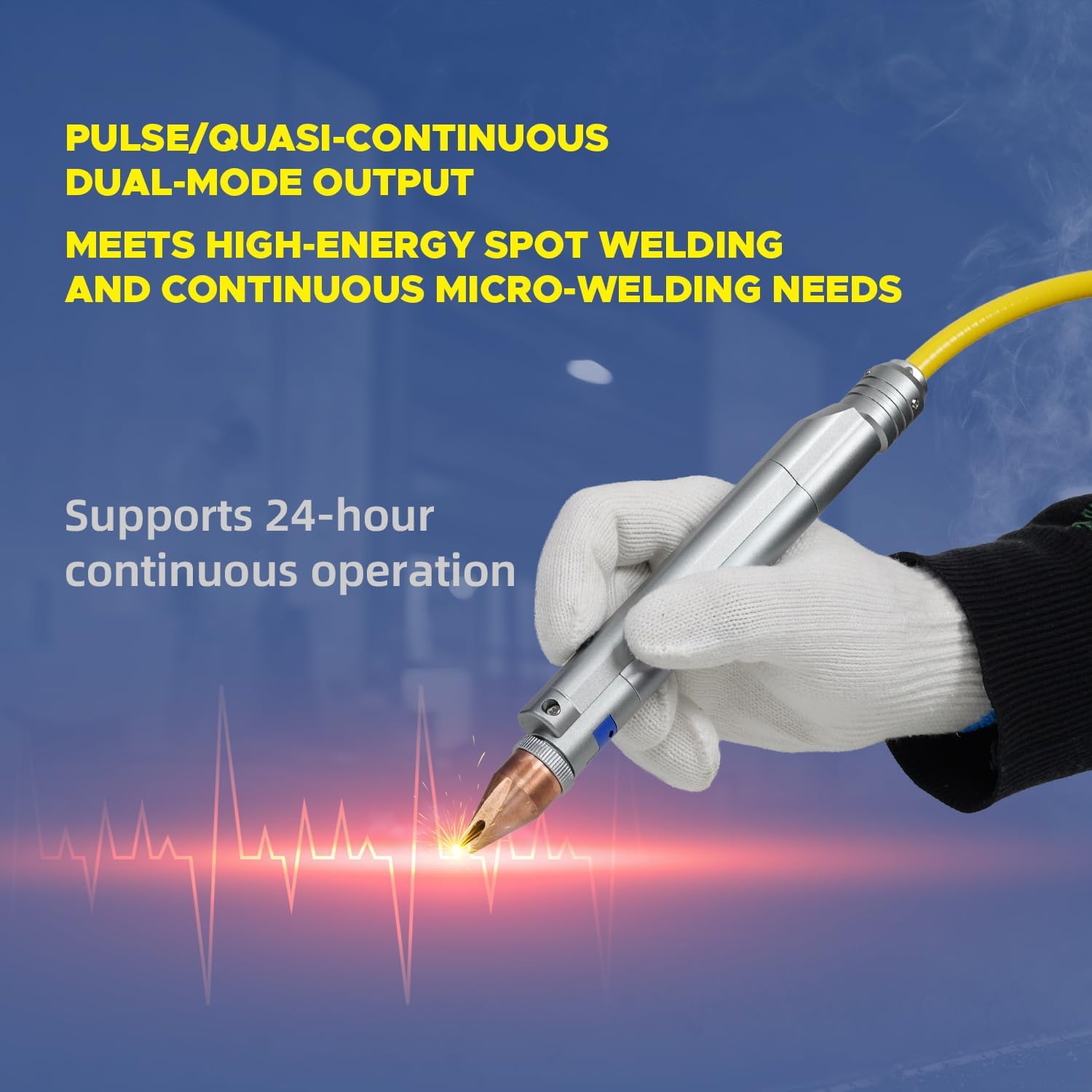

• INTRODUCTION - WTTTOOLS 300W portable laser spot welder features a compact integrated design for thin sheet metal welding and micro cutting. It comes with a lightweight handheld welding pen and an air-cooled system for stable operation.Power: 300W. Pulse Frequency: 1-300 Hz. Welding thickness: 0.1-1.5mm. Cutting thickness: 0.1-2mm. Product Dimensions: 14.7 x 7.5 x 13.0 in. Product Weight: 26.5 lbs. Laser Level: Class 1. Output Power: 0.39mW.

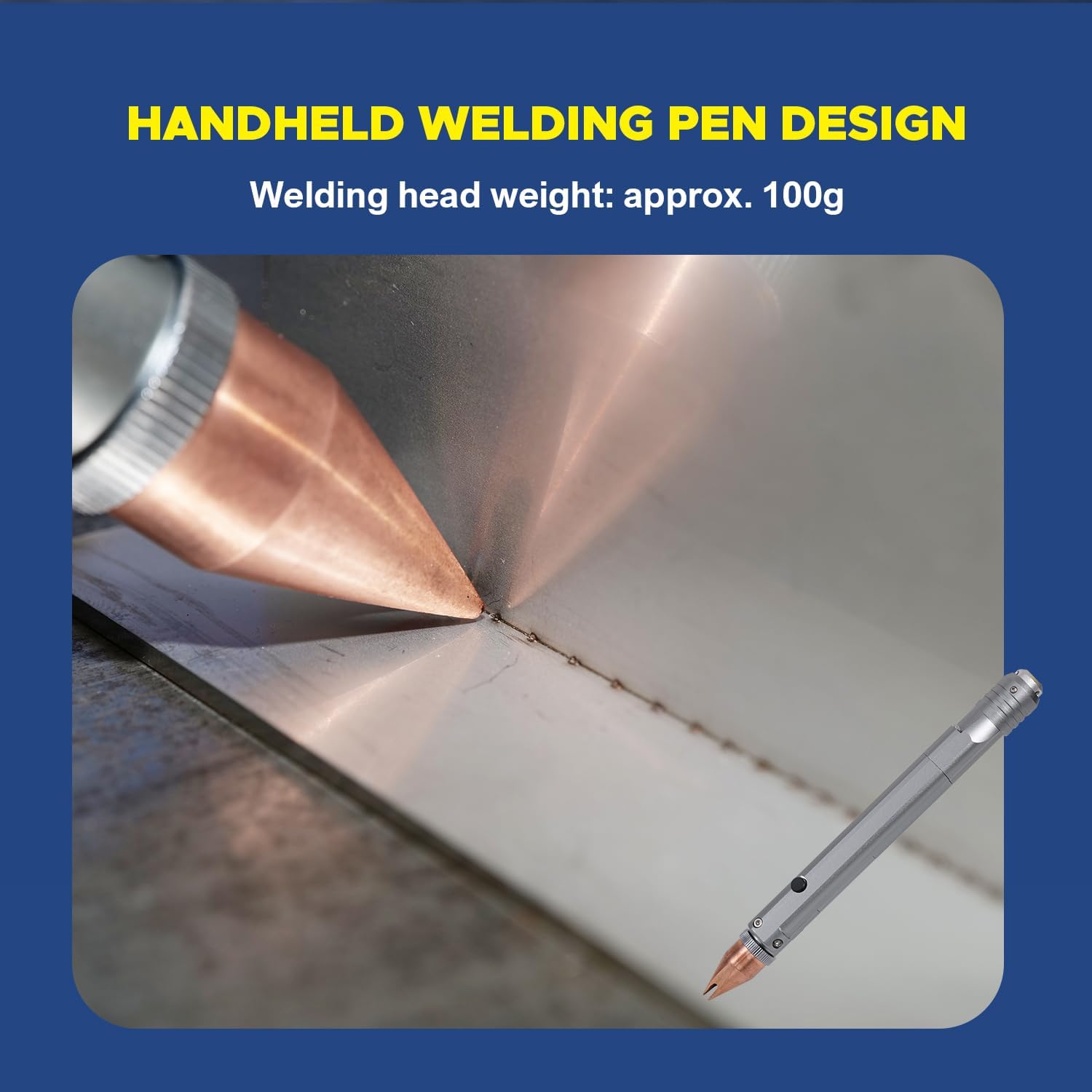

• 2-IN-1 WELDING AND CUTTING - Unlike single-function welders, our portable spot laser welding machine integrates welding and micro cutting in one unit. It supports thin--plate welding of 0.1-1.5mm, micro cutting thickness of 0.1- 2mm for thin sheet cutting. The lightweight handheld welding pen (approx. 0.24 lbs) offers easy handling, and the welding head is designed for quick and convenient switching. Additionally, the laser welding process delivers clean weld seams with no visible marks on the back side, and no secondary grinding is required after welding.
• PORTABLE DESIGN - Compact and easy to move, this portable laser welder is designed for flexible use across different working conditions. The 5-inch HD color touchscreen provides a clear, intuitive interface, allowing quick switching between modes and easy adjustment of welding parameters. Besides, this laser welding machine is friendly for beginners, ensuring stable and repeatable performance.
• WIDE APPLICATIONS - Built for ultra-thin sheet welding, this laser spot welding machine delivers concentrated energy with a small heat-affected zone, helping reduce burn-through and deformation on thin materials. It produces smooth, neat welds for stainless steel, carbon steel, copper, aluminum and more, making it a reliable choice for welding of thin plate welding, advertising lettering welding, lighting products, and DIY crafts.
• CARING WARRANTY - We are the subsidiary company of SFX Laser and the manufacturer of laser products since 2004. CE/ISO/FDA Certificates. We provide 1 year warranty for the whole machine. If you have any questions and problems, pls send us email via Amazon, we will do our best to ensure a smooth and reliable experience.
