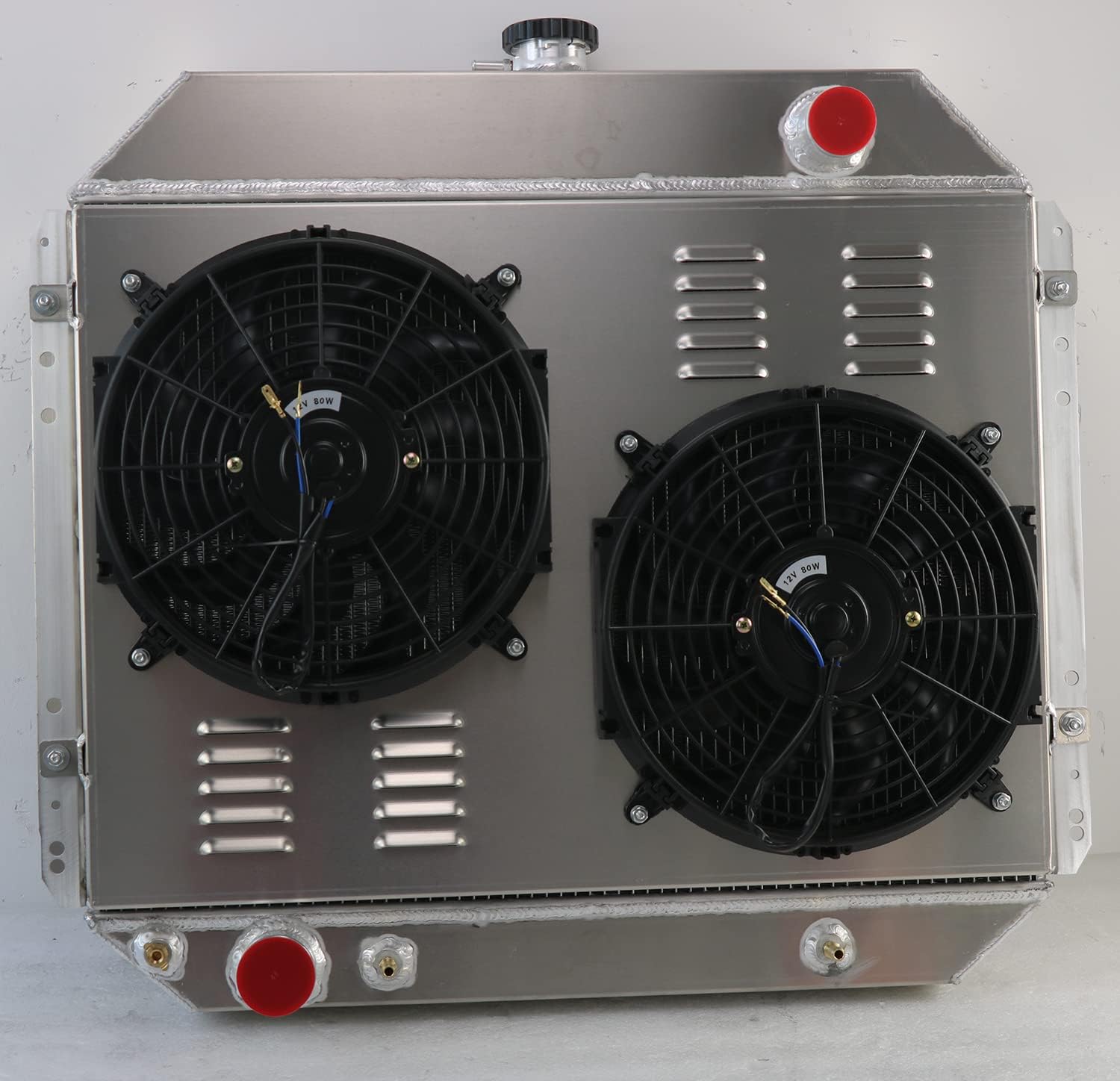

3 Row Aluminum Radiator for 1966-1979 1967 1968 1969 1970 Ford F100 F150 F250 F350 Bronco Truck V8 AT MT Pro 71 72 73 74 75 76 77 78 79 Radiators Shroud Fan Relay

Fitment: For F-series / Bronco Ford F100 F150 F250 F350 V8 1968-1979 For Ford F-series/bronco 1968-79 For Ford F-100 Pickup,f-250 Pickup For Ford F350 Truck 302ci.,351ci.,360c,390 Ci,400ci. For Ford F-250 F250 V8 83-94 For Ford F100 F150 F250 F350 Bronco Truck 66-79 This Listing Is Including: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12"" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05"" X 12.05"" X 2.5"" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Radiator Details: Material: Full Aluminium Upper Hose Fitting: PASSENGER Lower Hose Fitting: DRIVER Trans Cooler Details: 1/8-27NPT Mounting Type: BRACKET Mounting Specs: Ver - 16 1/2 Horizontal - 27 3/8 Transmission: Automatic and Manual. Features:100% Leak Tested, 3 Rows, Downflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation Fitment Type: Direct Replacement Delivery: Local Delivery Part Number: CC433,CU433,DPI433,CC132,CU132, 433,SBR433,CC433,CU433,DPI433,DPI433,DPI132,EC433,AE433,MC433,CU433,CU132,DPI132,KKS433 Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8"" NPT thread-in brass probe w/ 1/2"" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.

• Core Size : 18.9" H x 25.91" W x 1.74" T; Overall Size : 26.19" H x 29.53" W x 6.5" T;Inlet/Outlet: 1.75"/2" ; Upper Hose Fitting: PASS ; Lower Hose Fitting: DRIVER ; Trans Cooler Details: φ26*305*1/8-27NPT(T)
• Features： 100% Leak Tested, 3 Rows, Downflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation
• Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
• All-aluminum design with durable TIG-welded construction (T-5057 aircraft aluminum)
• OE/OEM Part Number： 433,SBR433,CC433,CU433,DPI433,KKS433,DPI132,CU132,CC433 CU433 DPI433 CU132, RA-F10068-2, RA-F100
• 12 Months warranty ; If you have any questions, please feel free to contact us, we will solve it for you
