2.4-inch IPS screen digital oscilloscope 100MHz analog bandwidth supports waveform storage and electrical signal measurement

<p>Maximum test voltage: 1X: 80V/10X: 800V</p><p>Number of channels: 1</p><p>Cursor type: horizontal X, horizontal Y, trigger Y</p><p>Screen size: 2.4 inches</p><p>Scan mode: support</p><p>Screen resolution: 320*240</p><p>One-key AUTO: support</p><p>Display process: TFT</p><p>Waveform storage: up to 2000 waveforms can be stored</p><p>Analog bandwidth: 100MHz</p><p>Waveform manager: support</p><p>Maximum sampling rate: 500MS/s</p><p>Voltage accuracy: ±2%</p><p>Rise time: &lt; 3nS</p><p>Frequency accuracy: ±0.01% high precision</p><p>Memory depth: 128KB</p><p>Measurement parameters: 12 types in total</p><p>Input impedance: 1M</p><p>Battery capacity: 3000mah lithium battery</p><p>Vertical sensitivity: 50mV~100V</p><p>Standby time: 12 hours</p><p>Time base range: 50S~6nS</p><p>Afterglow effect: 1~8 levels adjustable</p><p>Trigger mode: single/normal/auto"</p><p>Charging requirements: 5V/1A/2A/3A/4A</p><p>Trigger edge: rising edge/falling edge</p><p>Body size: 114mm * 74mm * 33mm</p><p>Coupling mode: AC/DC</p><p>Accessories: high voltage probe, USB, manual</p>

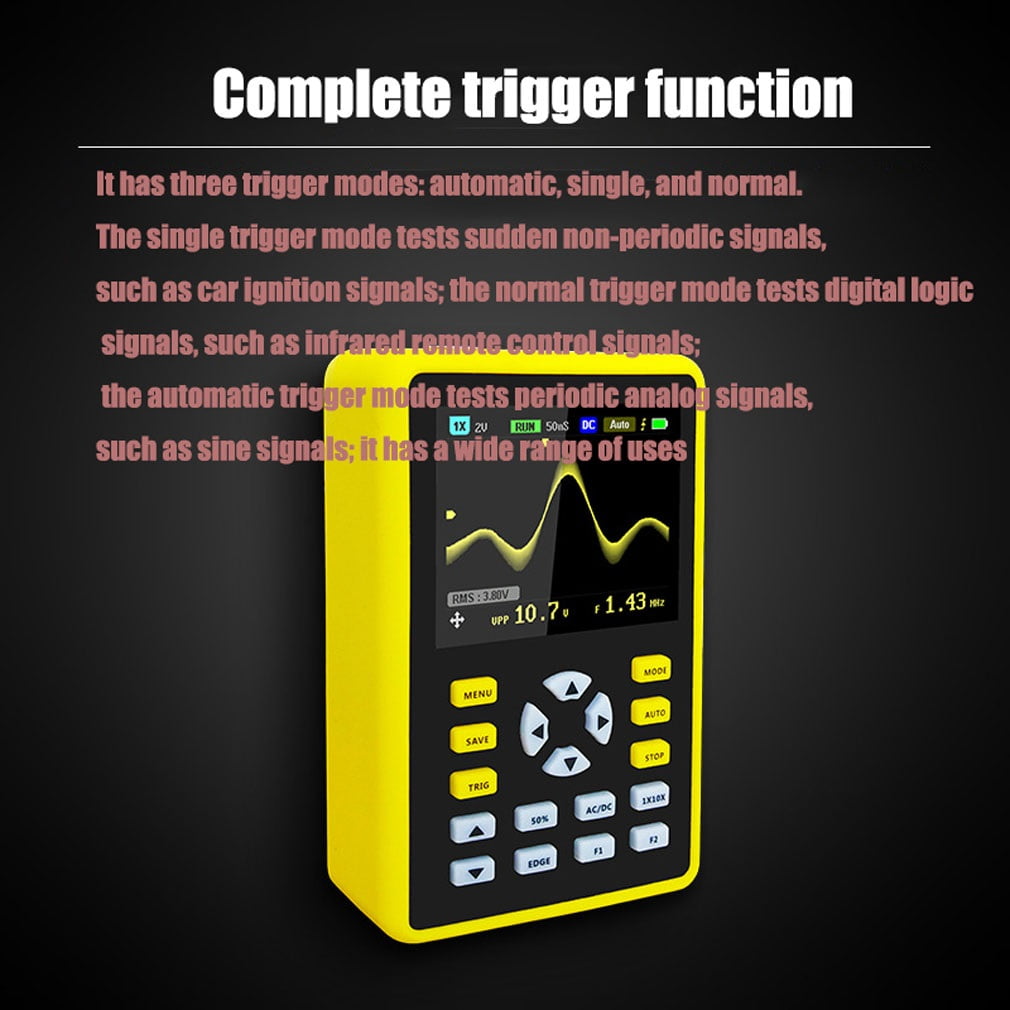

• Complete trigger function: It has three trigger modes: automatic, single, and normal. The single trigger mode tests sudden non-periodic signals, such as car ignition signals; the normal trigger mode tests digital logic signals, such as infrared remote control signals; the automatic trigger mode tests periodic analog signals, such as sine signals; it has a wide range of uses.

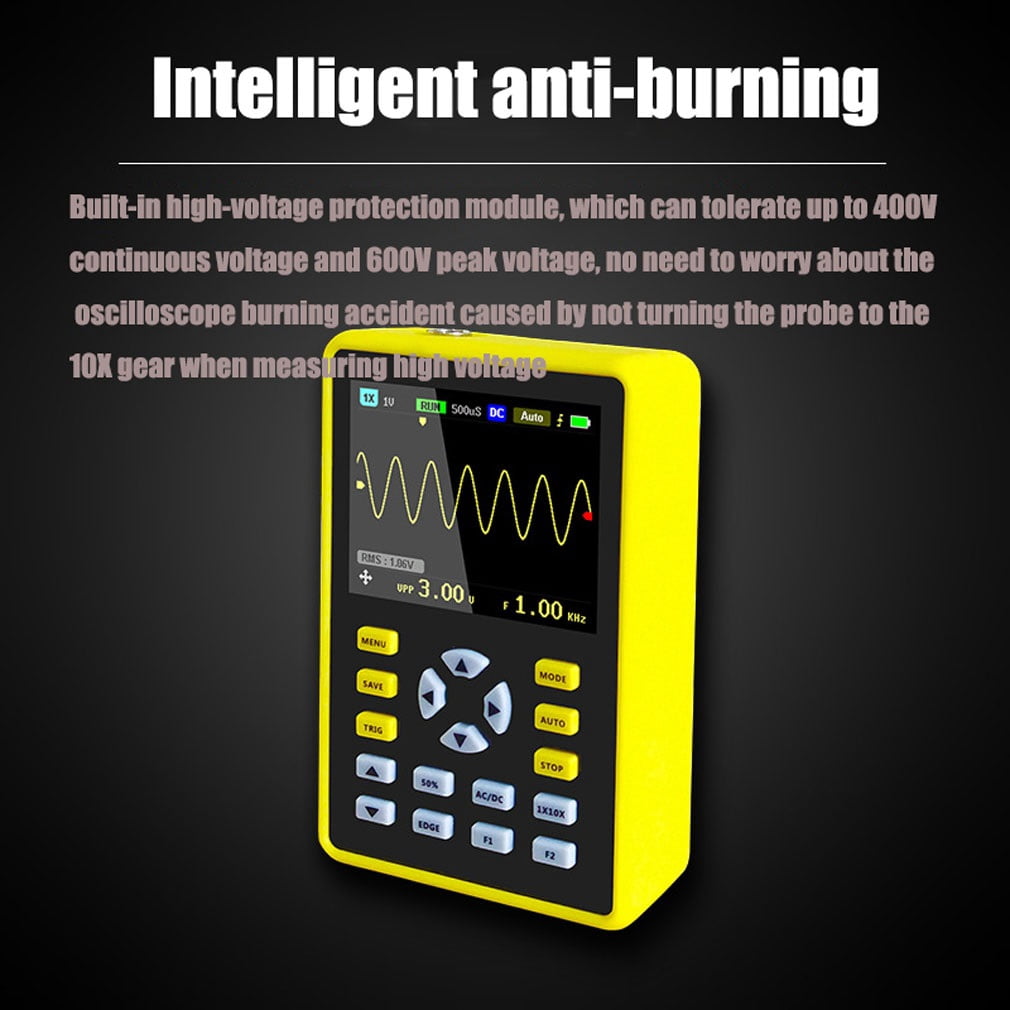

• Intelligent anti-burning: The built-in high-voltage protection module can tolerate up to 400V continuous voltage and 600V peak voltage. There is no need to worry about the oscilloscope burning accident caused by not turning the probe to the 10X gear when measuring high voltage

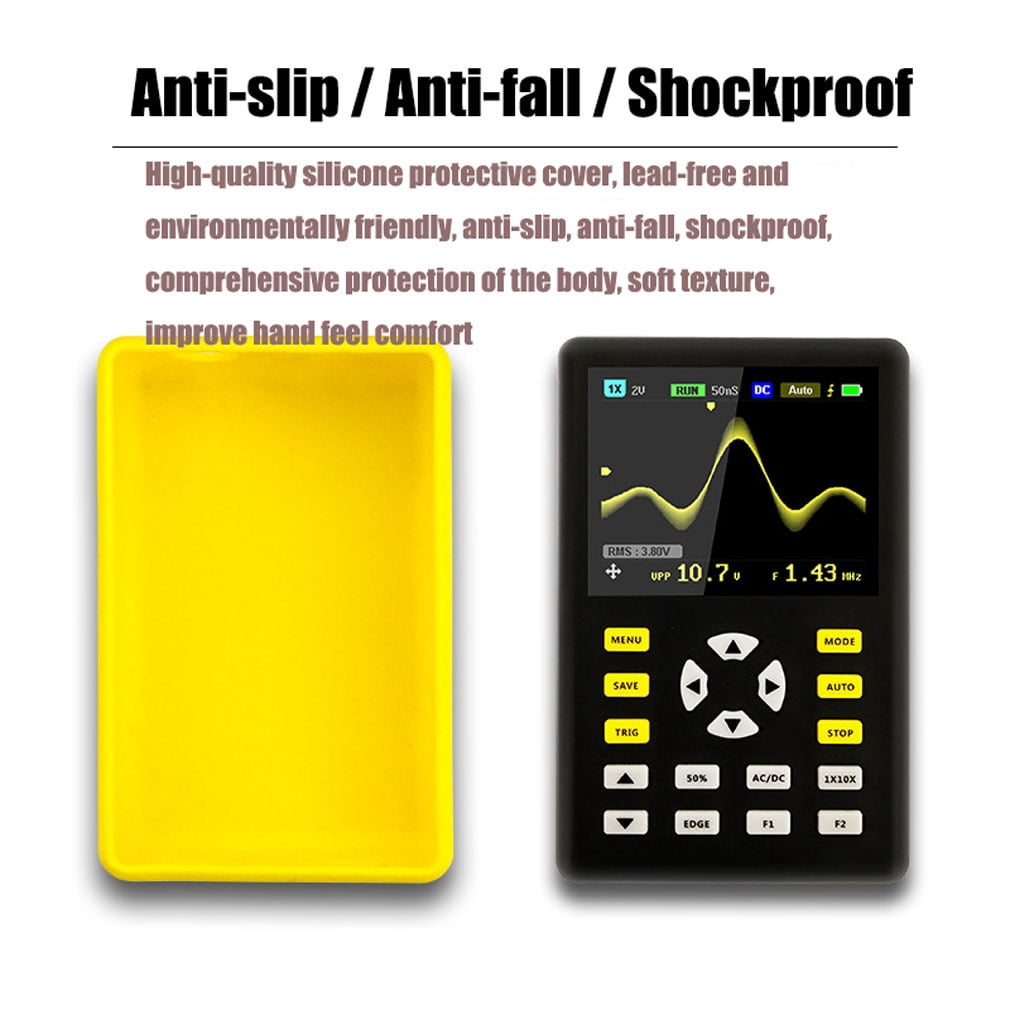

• Anti-slip/anti-fall/anti-shock: High-quality silicone protective cover, lead-free and environmentally friendly, anti-slip, anti-fall, anti-shock, comprehensive protection of the body, soft texture, and improved hand comfort

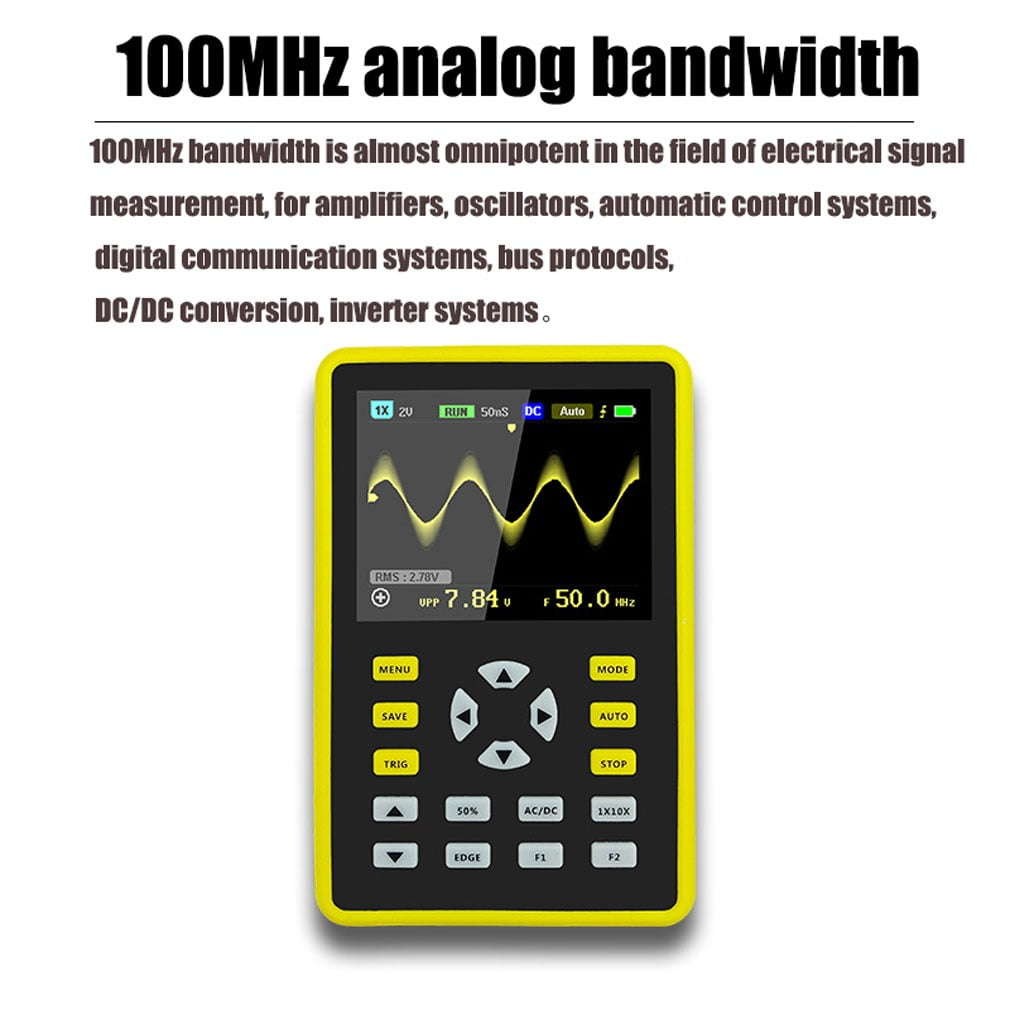

• 100MHz analog bandwidth: 100MHz bandwidth is almost omnipotent in the field of electrical signal measurement. It can easily handle the design, debugging and research of amplifiers, oscillators, automatic control systems, digital communication systems, bus protocols, DC/DC conversion, inverter systems,
• switching power supplies and other circuit units. Whether it is DIY production or scientific research and education, home appliance repair, automobile repair, product development and other fields are all good choices
