21" Thermopile for Water Heater, 750 Millivolt | 100112328 Compatible with Reliance, Whirlpool, A.O.Smith, Kenmore, American Water Heater, Rheem, Replaces 9007872005

100112328 Thermopile Assembly – Restore Your Hot Water TodayOur 100112328 replacement assembly is meticulously engineered to meet OEM specifications, providing a reliable, cost-effective fix for A.O. Smith, Whirlpool, Kenmore, and more. Stop paying for expensive service calls—this DIY-friendly part restores your unit’s heating capability in under 30 minutesExtensive Compatibility ListPlease verify your model number against the list below to ensure a perfect fit. This thermopile replaces part numbers: 6911197, 9007872005, 100094024, and 100112327Compatible with Whirlpool:​ N30T61-303, N40T61-403, N40T62-403, N50T61-403, N50T62-403, N50T91-403, N40T61-353, N40S61-403, N40T121-403, 40S6-40NG, 40T6-34NG-400, 40T10-40NG-400, 50T6-40NG-400Compatible with American Water Heaters:​ N30S61-303, N30T61-303, N40S61-403, N40T61-343, N40T62-403, N40S91-403, N40T91-403, N40T121-403, N50T61-403, N50T61-504, N50T91-403, N50T122-403, BFG6140T403NOCompatible with A.O. Smith:​ GS6-300, GCV-300, GPX-300, GVK-300, XCZ-300Compatible with Reliance / State:​ 630 LORT 301, 630 LORS 301, 630 LOCT 401, 630 LOCS 401, 640 LORT 301, 640 LORS 301, 640 LOCT 401, 650 LORT 301Compatible with Kenmore:​ 153.330290, 153.331150, 153.331640, 153.331861, 153.336930, 153.579510Quick & Easy Installation1. Safety First:​ Turn the gas control knob to "OFF" and close the main gas shut-off valve.2. Access Panel:​ Remove the outer access panel and insulation to expose the gas control valve.3. Disconnect Wiring:​ Unplug the thermopile, thermostat, and igniter connectors from the gas valve. Take a photo for reference.4. Remove Burner:​ Unthread the nuts securing the manifold door. Carefully slide the burner assembly out of the combustion chamber.5. Swap Sensor:​ Locate the old thermocouple/thermopile nut, unscrew it, and remove the sensor tip. Install the new sensor, ensuring it sits firmly next to the pilot tube. Do not overtighten.6. Reassemble:​ Slide the burner assembly back in, reattach the manifold door, and reconnect all lead wires to their correct terminals.7. Leak Test & Ignition:​ Turn the gas supply on. Apply a soapy water solution to all fittings—if bubbles appear, tighten the connection. Once leak-free, follow your heater’s manual to ignite the pilot.

• Thermopile Compatibility: The 100112328 gas water heater thermopile assembly can replace #6911197, 9007872005, 100094024, and 100112327. Compatible with A.O. Smith, Reliance/State, Whirlpool, Kenmore, and American water heaters.Not for use on Reliance C3 FAIR and C3 FVIR.

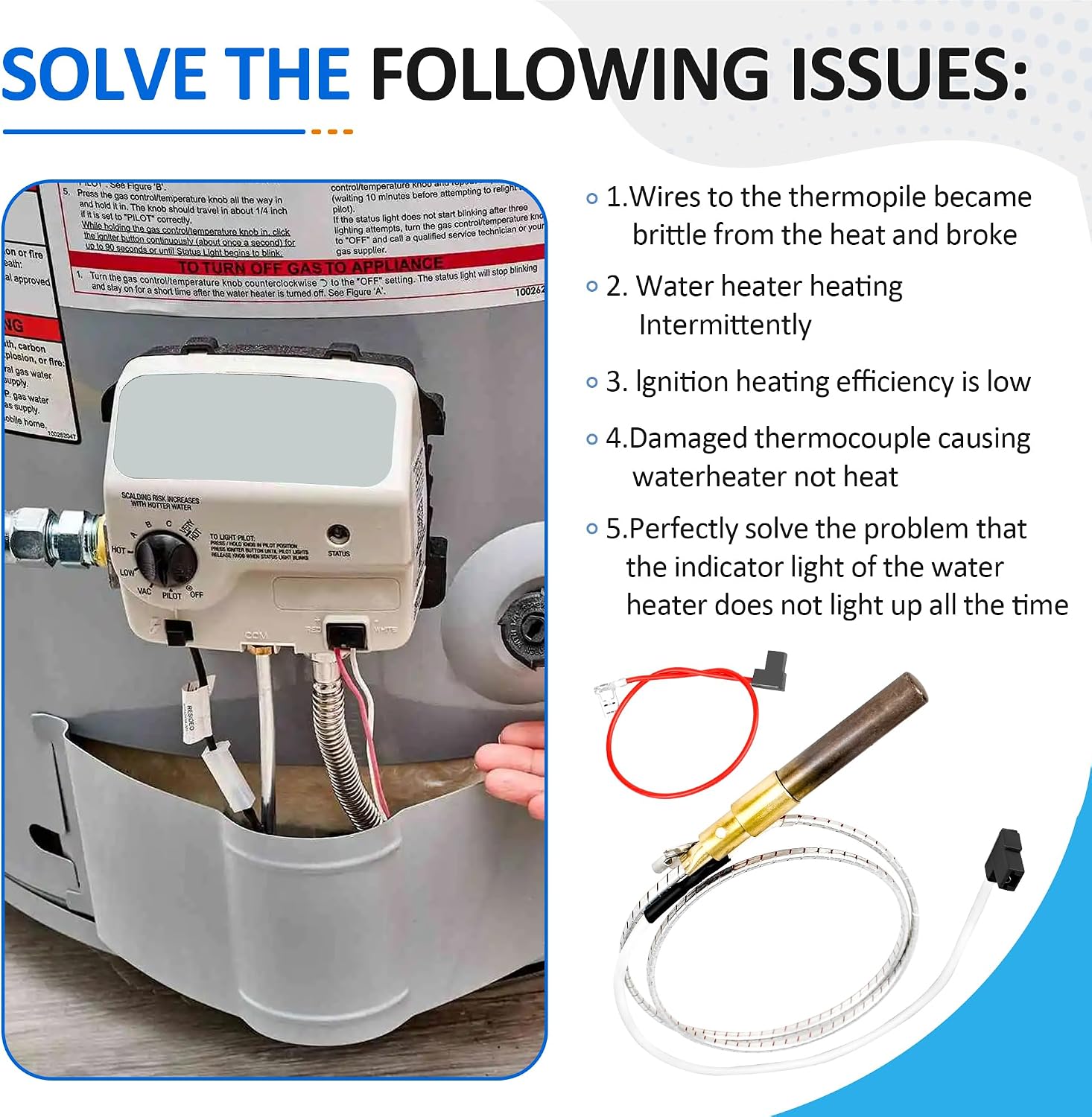

• Thermocouple for Water Heater Solve The Following Issues:1.Wires to the thermopile became brittle from the heat and broke.2. Water heater heating Intermittently.3. lgnition heating efficiency is low.4.Damaged thermocouple causing waterheater not heat.5.Thermopile 100112330 for ao smith water heater parts perfectly solve the problem that the indicator light of the water heater does not light up all the time

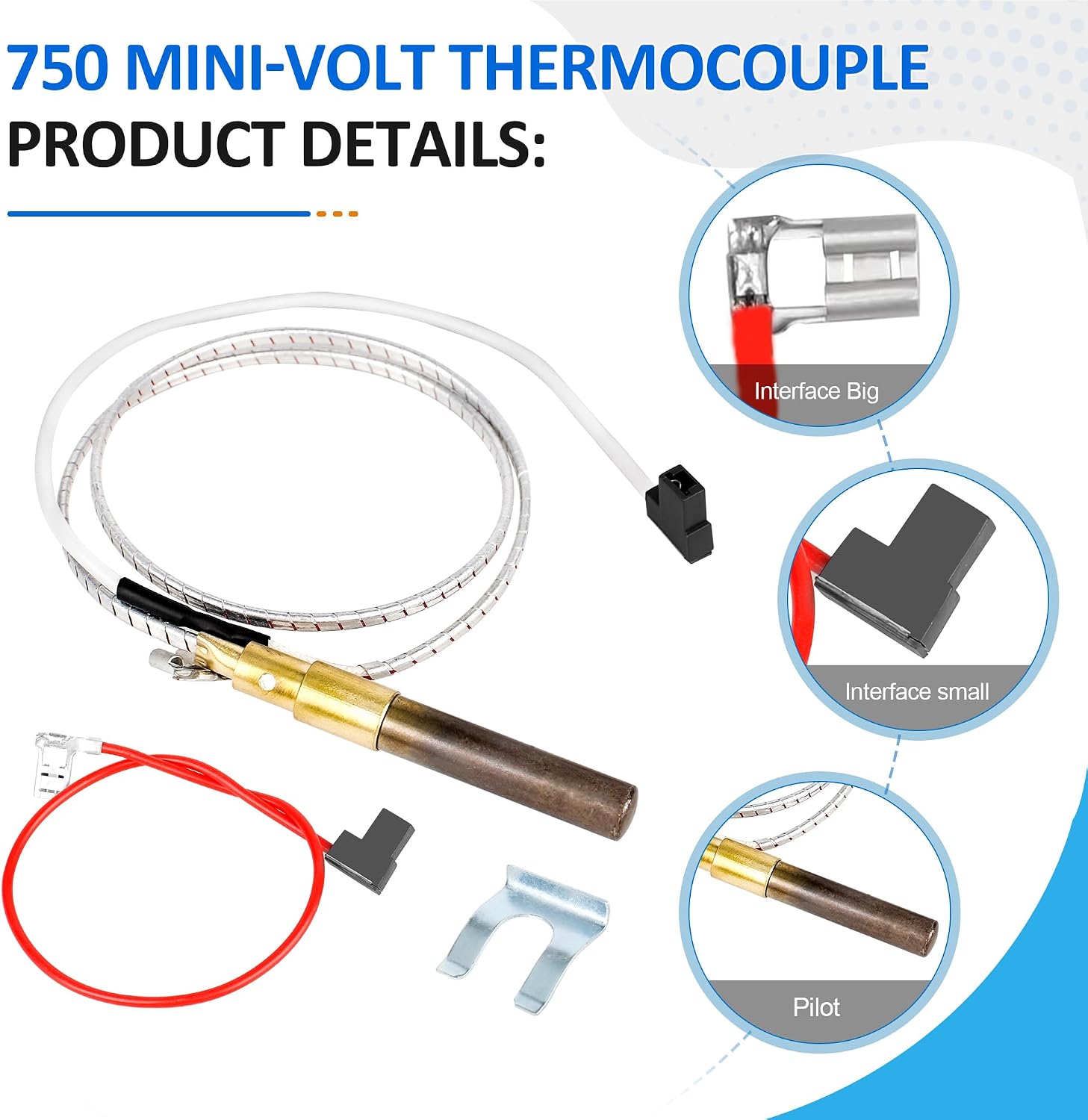

• Specifically Designed for Natural Gas:The gas pilot assembly is designed for matural gas. Maximum operating temperature: 750 degrees; Rating: (650 degrees)≥750mV; Internal resistance: 3.0Ω±10%(20 degrees).For whirlpool hot water heater parts ,It is a New replacement water heater pilotassembly for ao smith water heater thermocouple
• Great Quality:Our 100112328 water heater thermopile assembly Made of high quality raw materials, and undergo rigorous testing by the supplier before leaving the factory to ensure thermopile for water heater a super long service life.
• Thermocouple for Water Heater Installation Steps:1. Turn off the gas supply.2. Unplug all accessories from the gas valve.3. Remove the burner assembly.4. Remove the thermocouple from the ignition assembly.5. Install new thermocouple.6. Put everything back into place.7. Turn on the air source and check for leaks
