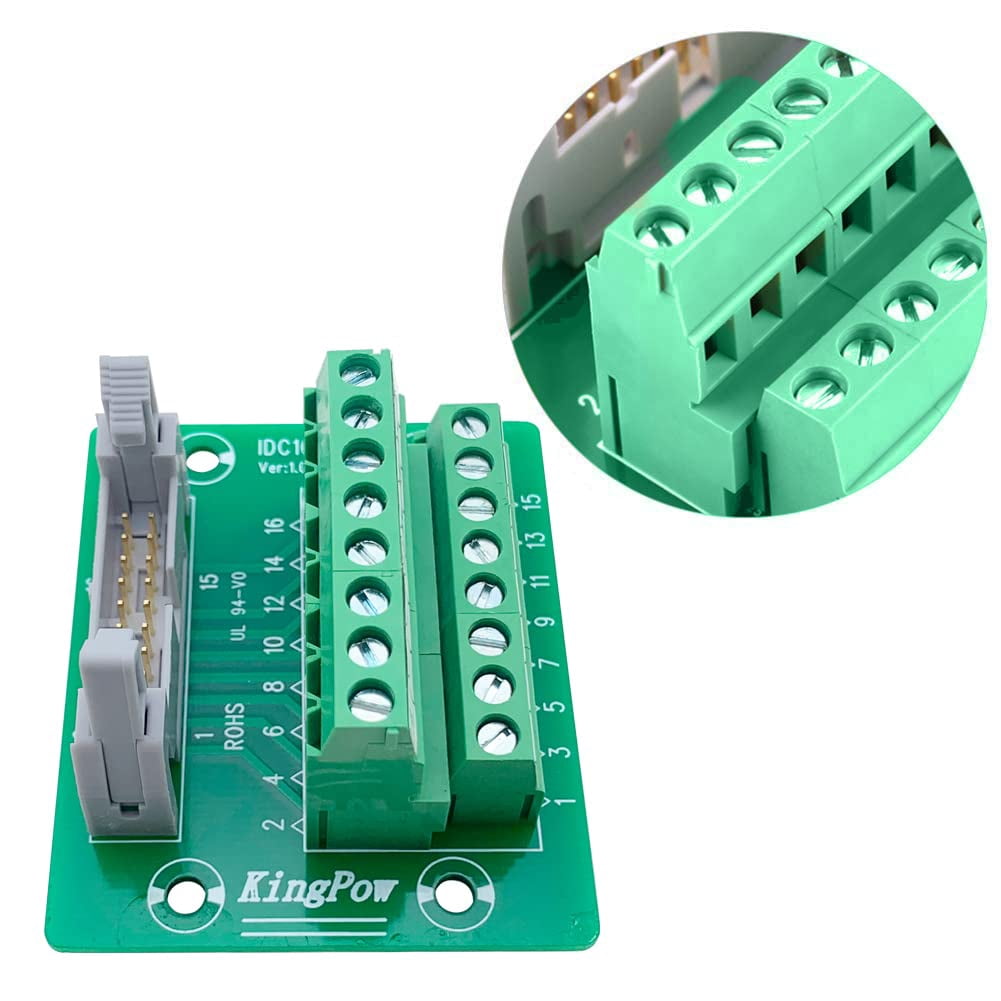

16 expansion board 2816-pin male terminal block connector, with 45 rail mounting feet, suitable for

IDC pin pitch 2.54mm/0.1" male header connector. Standard IDC16 pitch 0.1" header, you can use 16pin FRC(flat ribbon cable) connector cable connect all Arduino Uno pins to peripheral equipment.

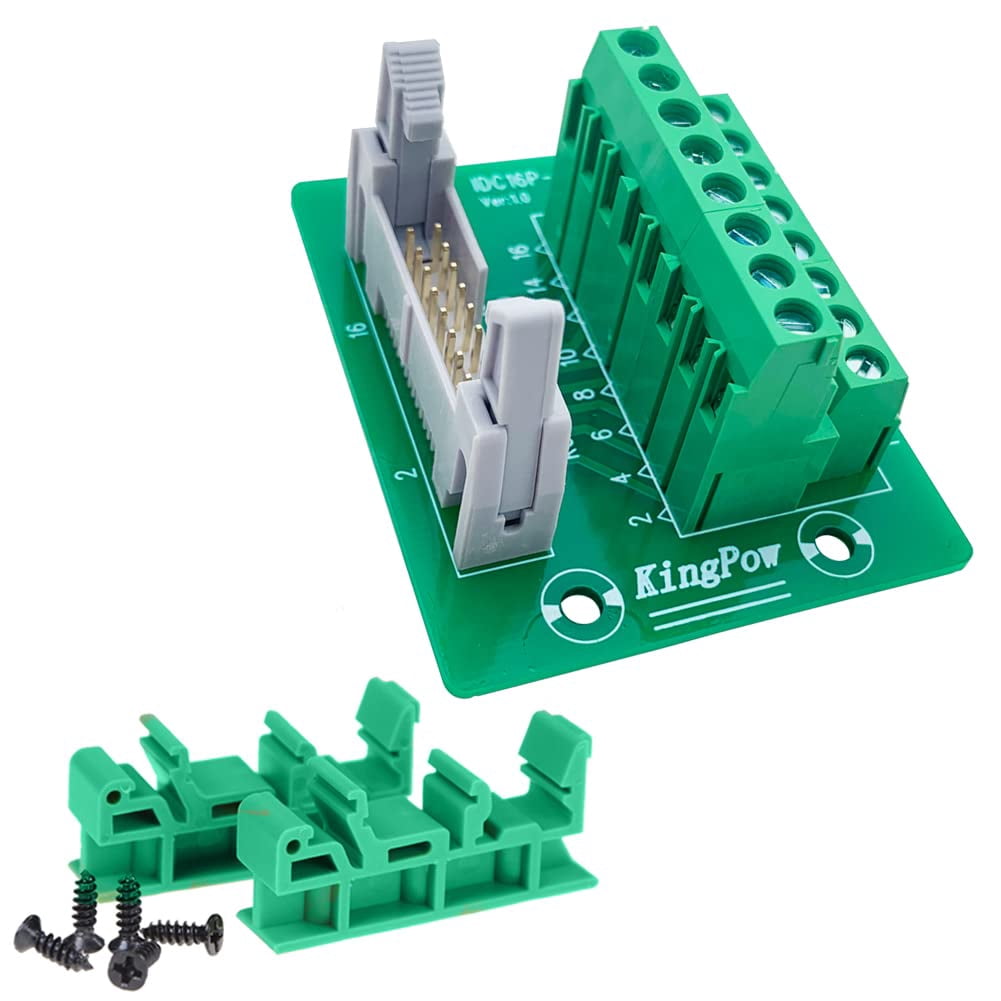

• DIN Rail Mounting: Come with Din mount carrier and screws Compatible with 35mm, 32mm or 15mm DIN rail.
• Wire range: 26-16AWG. Rated voltage: 60V. Rated current: 1A / per pin. Operating temperature: -20 to 50 Celsius.
• The screw connectors make attaching and removing wires easily. Really helpful in your DIY prototyping project.
• Widely Applications: It is well-suited for interfacing with I/O cards, data acquisition (DAQ) equipment, and any other device that uses a 2x8 16-position header connector. Applications include the Raspberry Pi A+, B+, 2B, and 3B boards, all of which use a 0.1" pitch 2x8 I/O pin header for their GPIO expansion ports.
